Wagner Meters

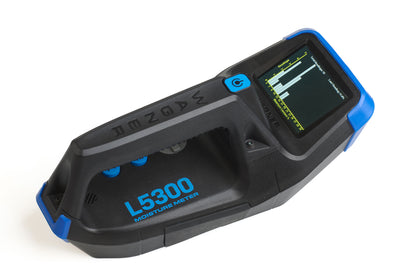

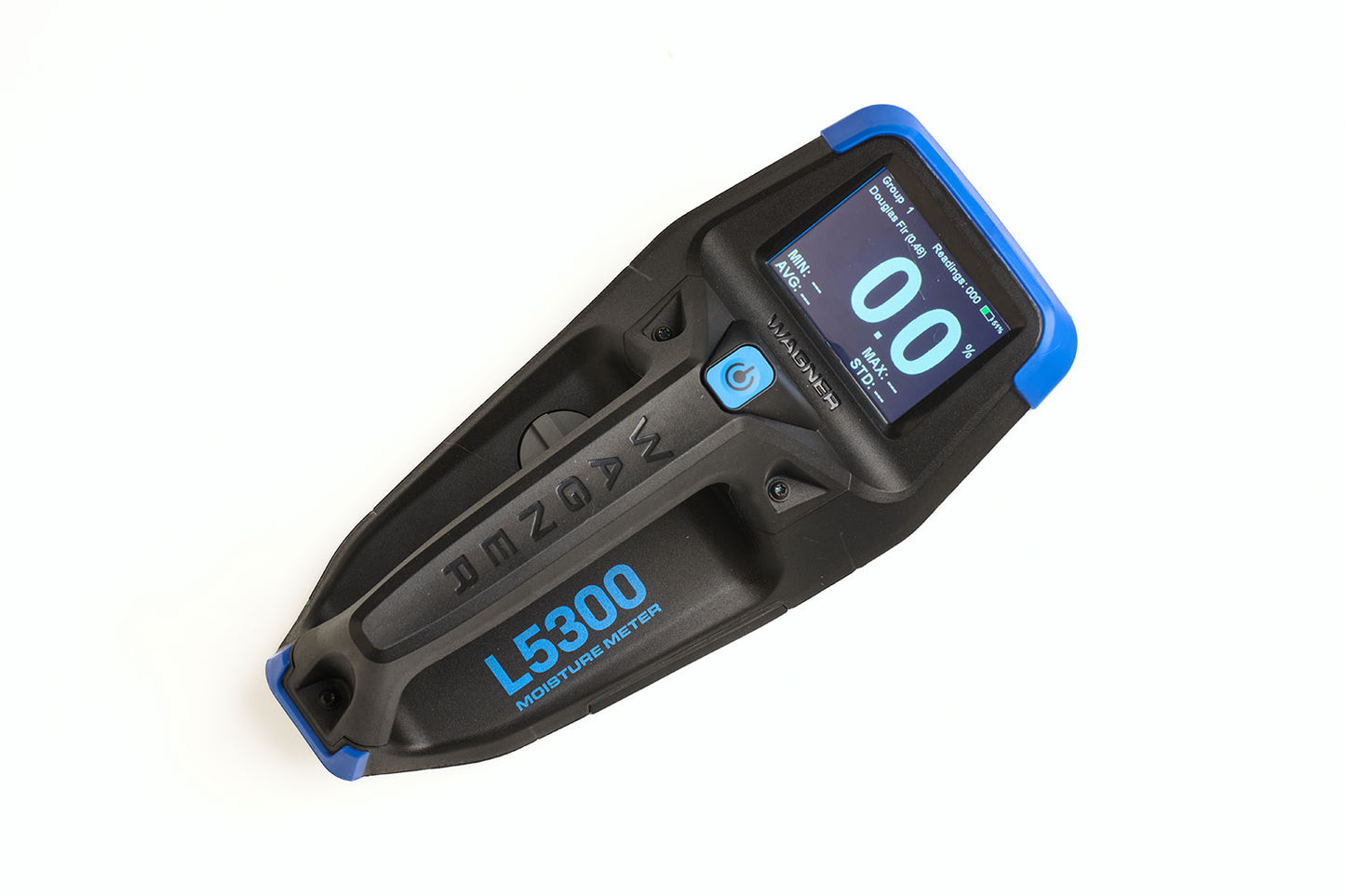

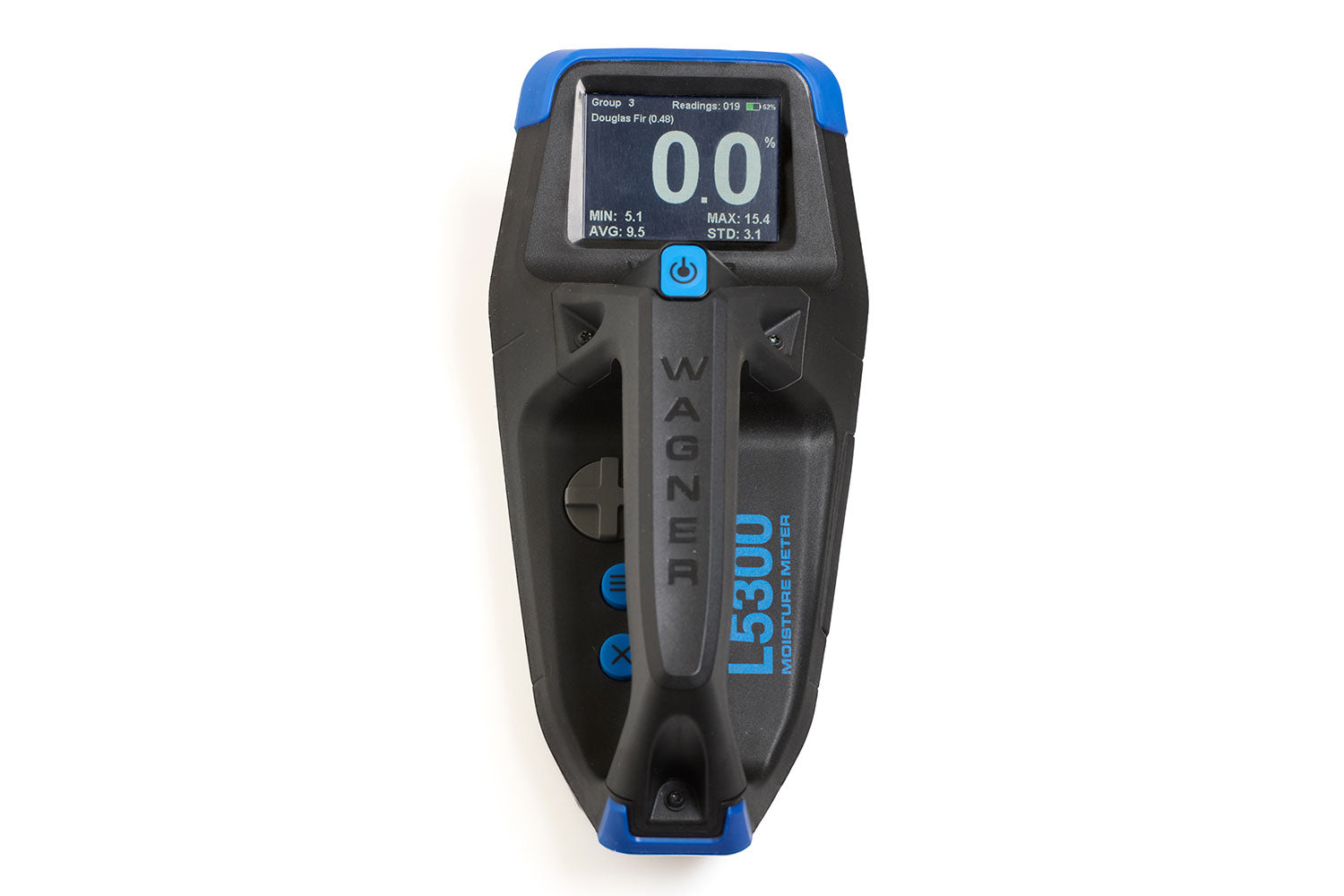

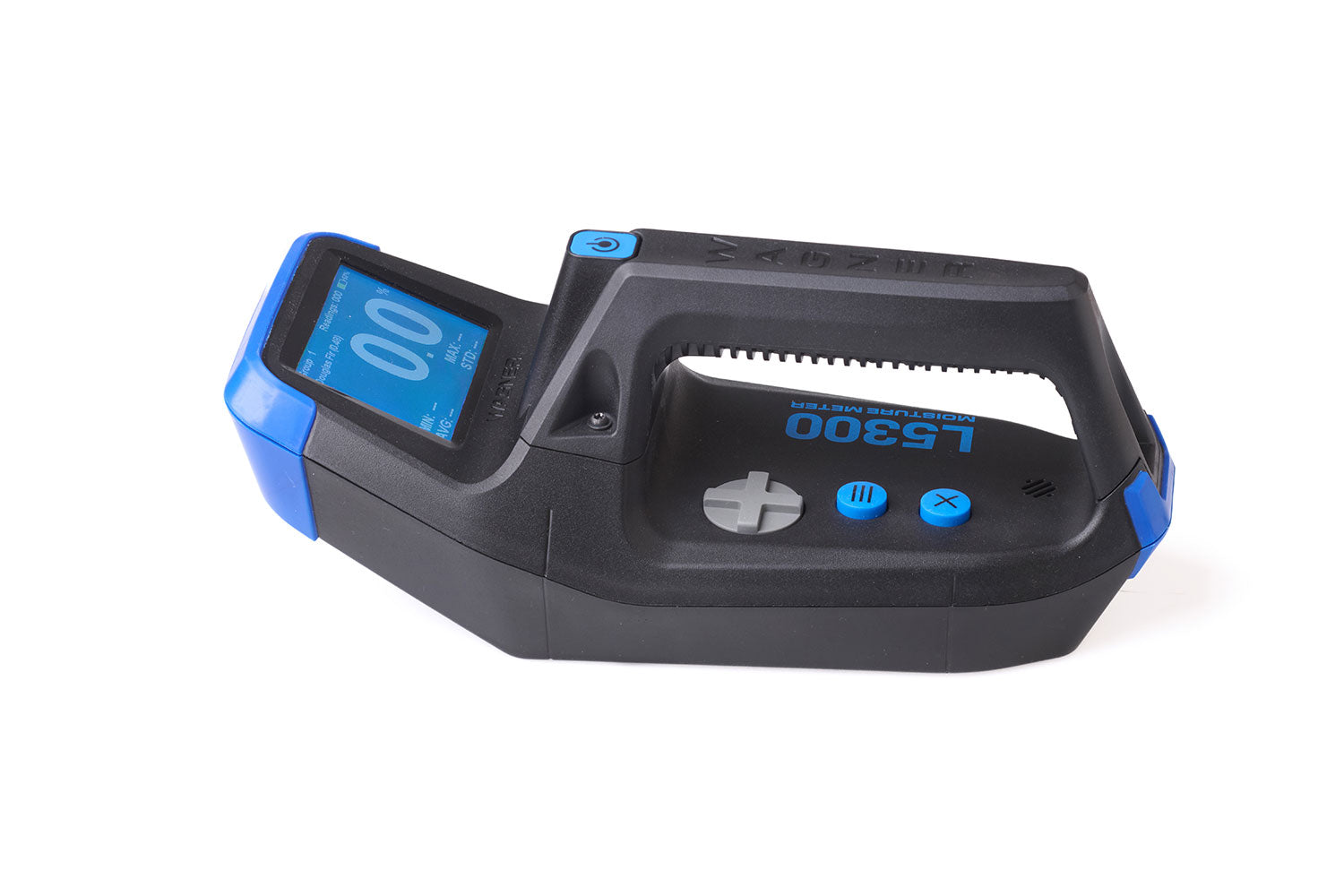

L5300 Industrial Handheld Wood Moisture Meter (Compatible with Stack Probe)

L5300 Industrial Handheld Wood Moisture Meter (Compatible with Stack Probe)

Regular price $1,890.00 USD
Regular price Sale price $1,890.00 USD
Sale Sold out
Calibrator

SKU:890-05300-001

Secure Order   Free Shipping   1-year Warranty View full details

The L5300 is Wagner Meters’ most advanced industrial-grade wood moisture meter, built for sawmills, kiln operators, and wood product manufacturers who demand accuracy and efficiency. Combining accurate 1-inch deep (2.54 cm) readings with Bluetooth connectivity and WoodStat™ Pro software, it helps you move from moisture measurement to analysis and reporting without interrupting your workflow.

Powered by Wagner’s IntelliSense pinless sensor technology, the L5300 measures moisture within the wood, below the surface. Choose from 46 built-in wood species and customize your meter’s list with up to 100 total entries for readings tailored to your materials—and with access to thousands more in Wagner’s online wood species database.

Its redesigned screen interface makes readings easy to navigate, while the histogram display reveals moisture variation at a glance. Store up to 1,000 readings per Group, across 100 Groups, to keep your moisture data organized.

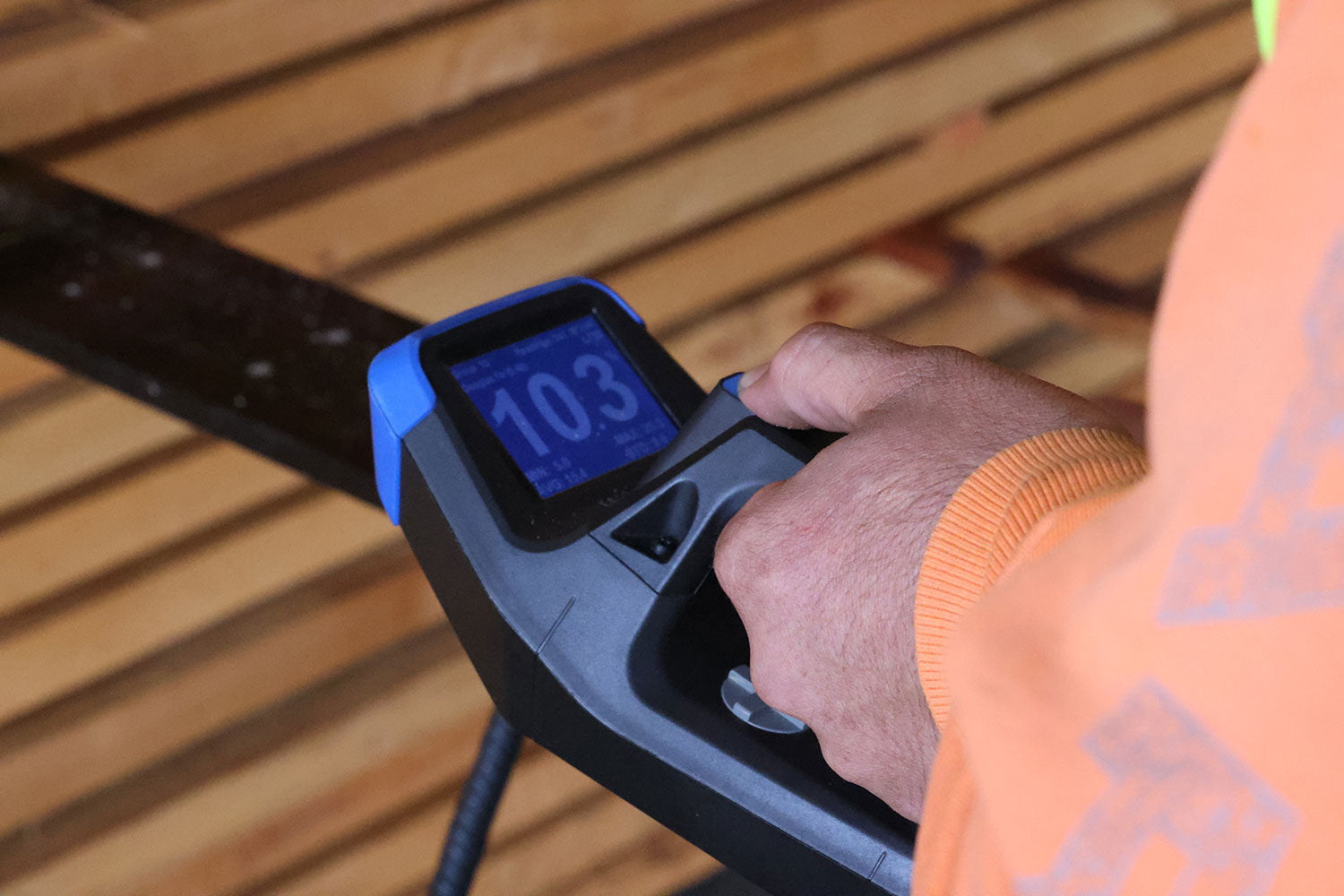

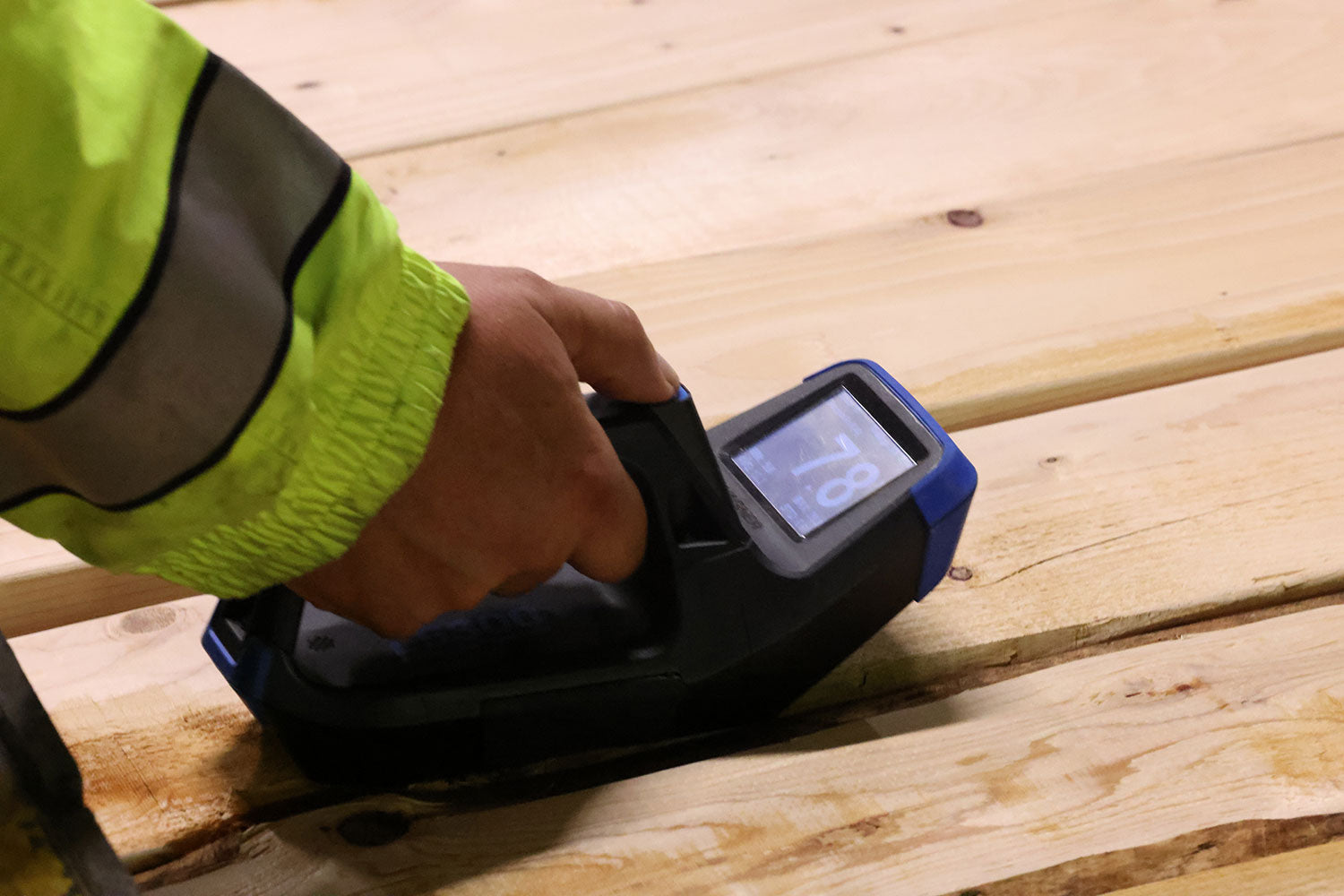

Capture readings more quickly and with less effort using patented Auto-Reading Mode, which automatically takes a reading when you pause on a board, without a button press. Continuous Reading Mode takes three readings per second as you sweep across a board or lumber pack, helping you quickly assess moisture variation.

For checking moisture deep within stickered stacks, connect the optional L722 Lumber Stack Probe to identify inconsistencies that could affect drying decisions and product quality.

Connect the L5300 to WoodStat™ Pro on your phone, tablet, or computer to transfer readings, manage custom species lists, analyze moisture data, or to create and share reports. Available for Android, iOS, macOS, and Windows, WoodStat Pro helps you keep moisture data accessible in the yard, at the kiln, or in the office. iPhone and iPad connect via Bluetooth, while Android devices, Mac computers, and Windows PCs support both Bluetooth and USB connections. Available features vary by platform.

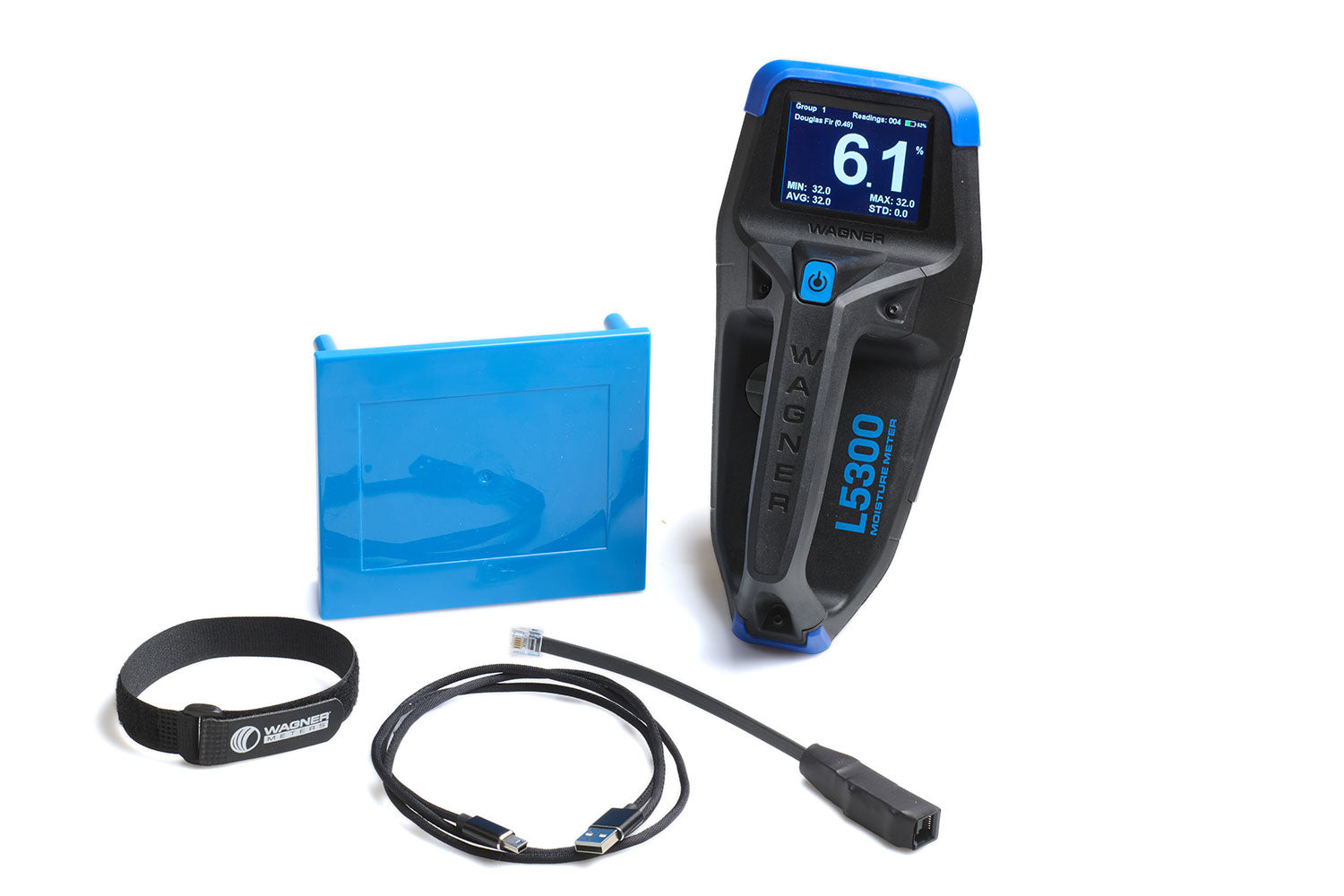

For additional analysis and reporting support, WoodStat Pro includes an optional AI Assistant that you can enable in settings. It is turned off by default, giving you control over whether to use it. Expanded language options support international users, and included USB-C-to-Mini-USB and USB-A-to-Mini-USB cables provide flexible wired connection options.

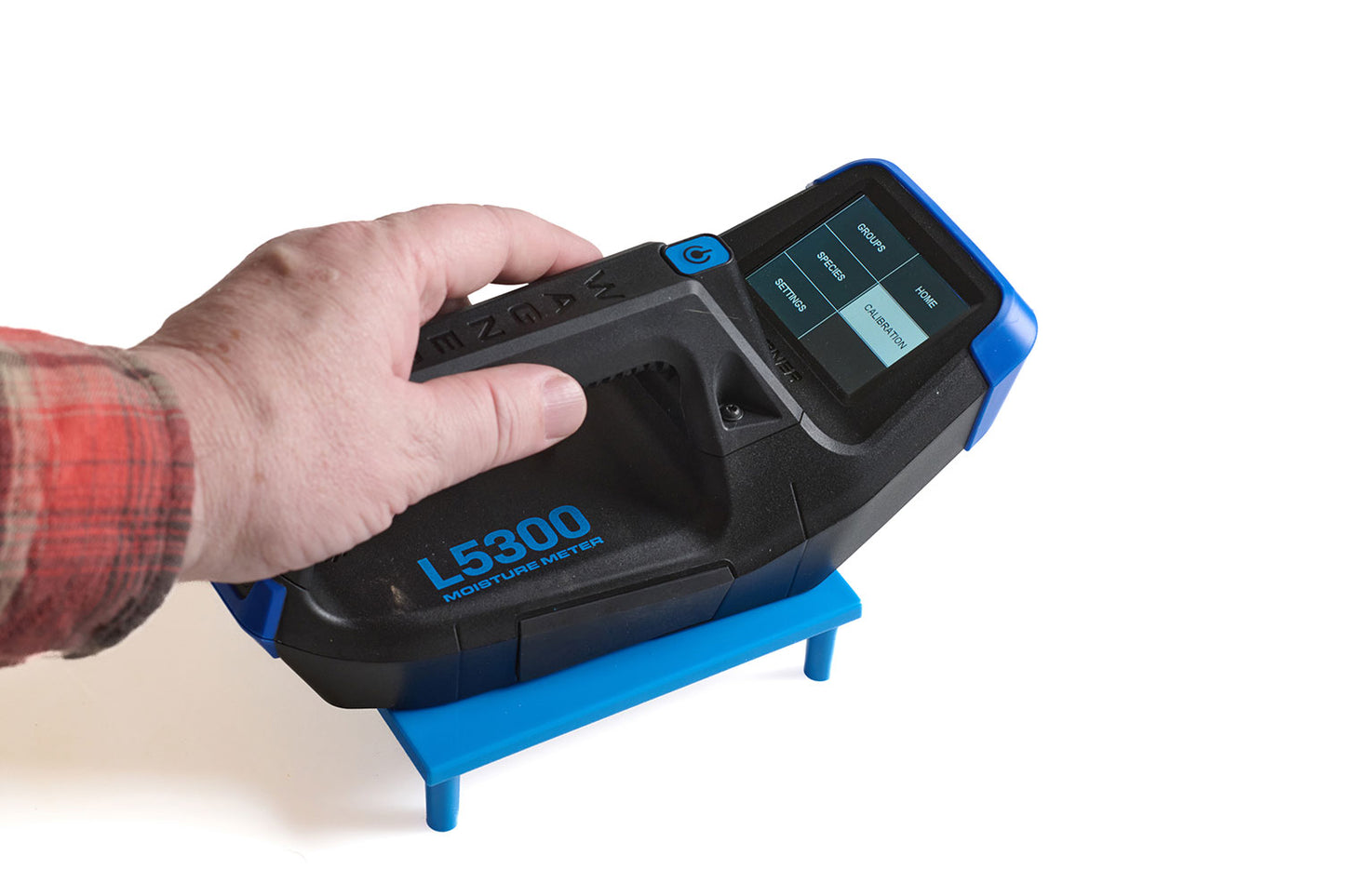

The L5300 comes factory-calibrated and includes an On-Demand Calibrator for verifying accuracy and performing on-site calibration. An optional NIST-traceable calibrator is also available.

Overall, this meter’s rugged construction, flexible reading modes, and connected data management will help you make informed moisture decisions, reduce waste, and keep production moving.

L5300 Features and Benefits

Essential for Quality Control: Essential for Quality Control: Designed for sawmills, kilns, and wood product manufacturers looking to reduce waste, improve yield, and ensure consistent moisture levels across every stage of processing.

Built Tough for Industrial Environments: Durable and dependable, this rugged moisture meter is engineered to perform in demanding lumber facilities and high-output production lines.

1-inch (2.54 cm) Deep Moisture Readings: Get fast, accurate readings of wood moisture content up to 1 inch (2.54 cm) deep with Wagner’s IntelliSense pinless sensor technology, ideal for thicker lumber and industrial drying operations.

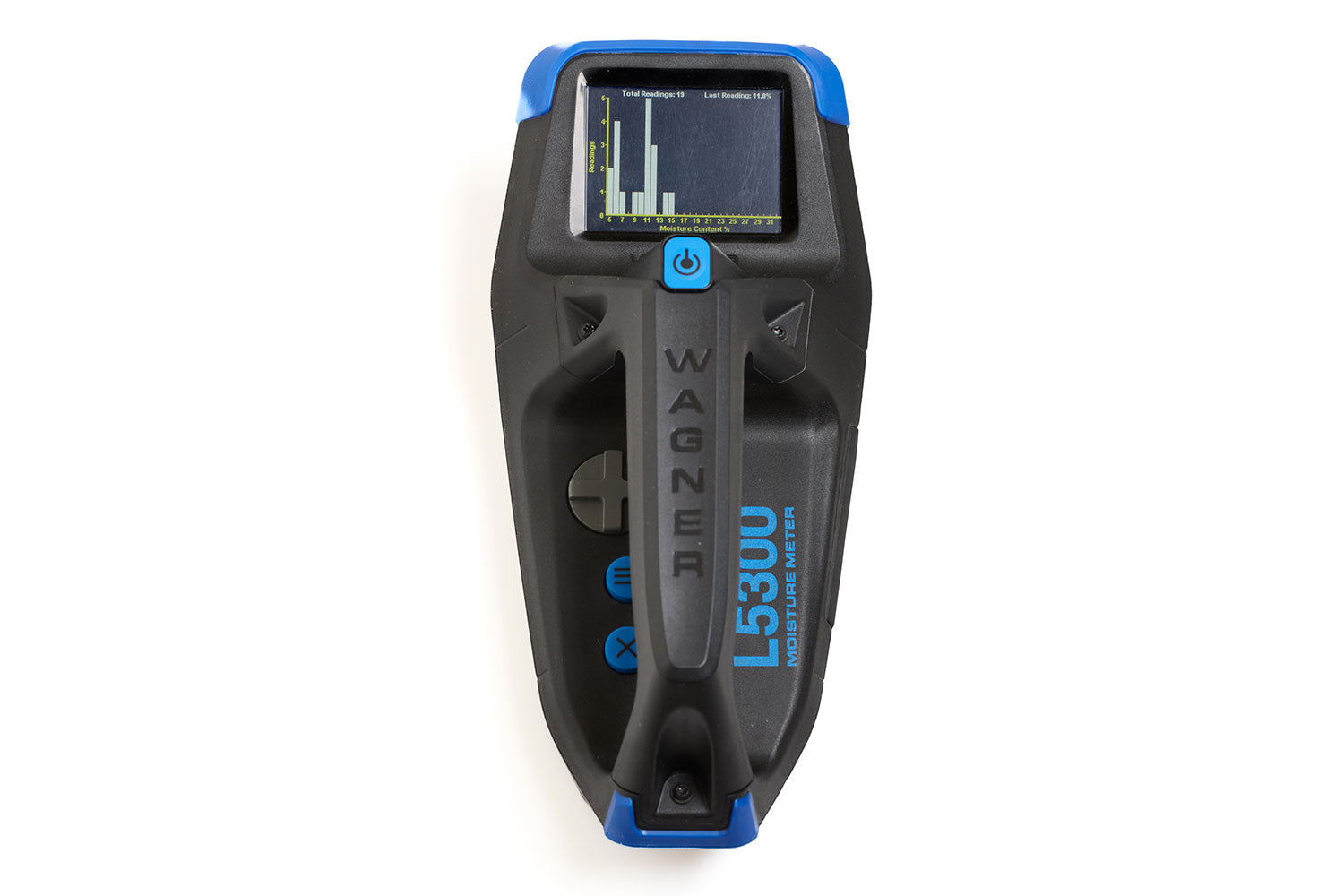

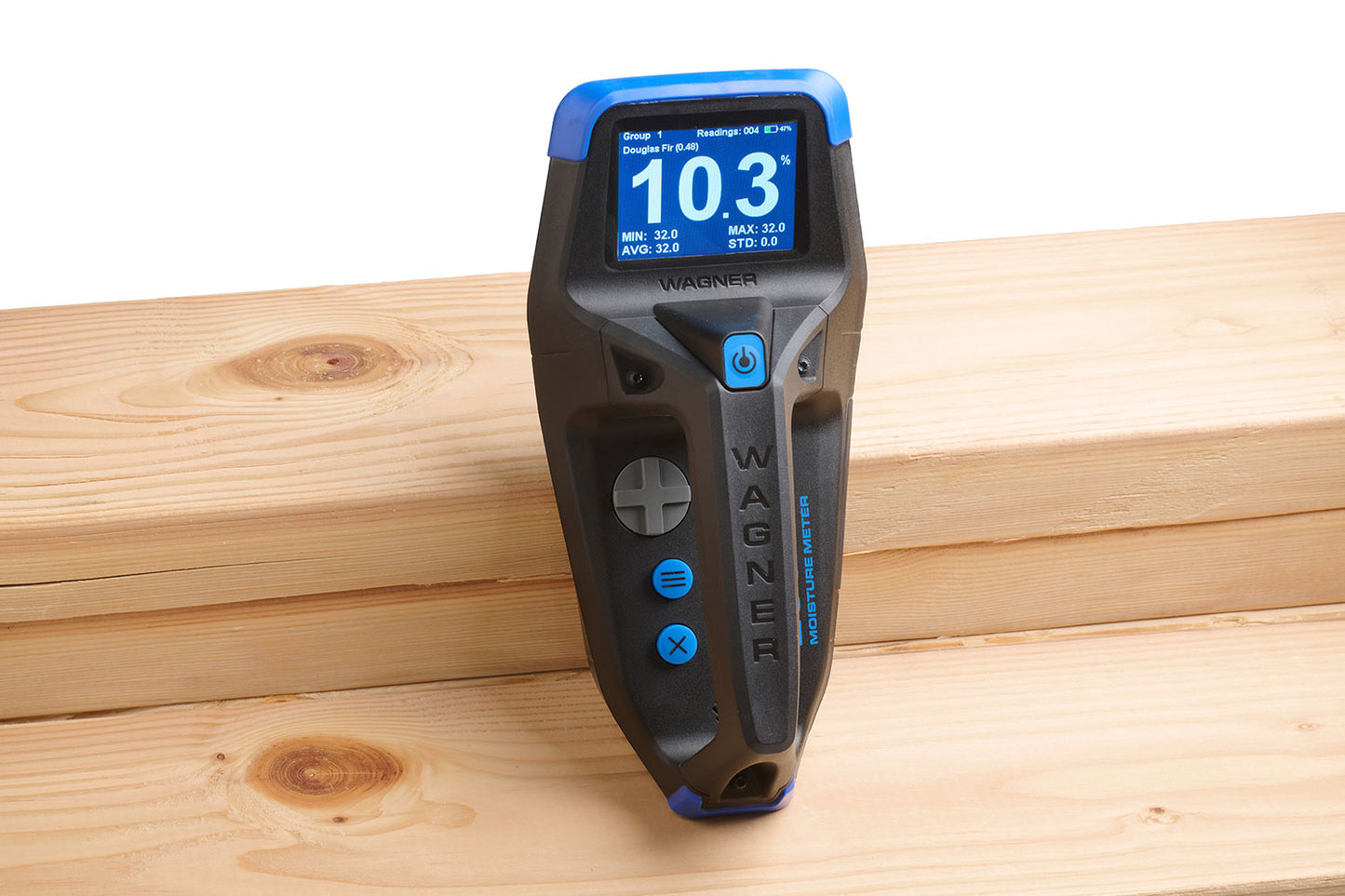

Histogram Display for Quick Moisture Analysis: Visualize moisture variation at a glance with the L5300’s intuitive histogram mode. Spot inconsistencies and act fast to prevent defects or waste.

Large Wood Species Library: Comes preloaded with 46 wood species and supports up to 55, giving you tailored accuracy for your specific materials.

Portable & Stand-Alone Operation: No external probes, accessories, or software required—perfect for mobile use and quick inspections in the field.

Advanced Data Storage: The L5300 can store up to 1,000 readings per Group, with 100 Groups available.

Included On-Demand Calibrator: Comes factory-calibrated for convenient field verification—no need to send the meter away. For operations requiring traceable calibration, purchase the NIST-traceable On-Demand Calibrator to support ISO compliance and internal quality control protocols.

Quick Import Feature: Choose to import all readings into a single folder or organize them into separate folders in WoodStat Pro, streamlining your workflow.

Detect Hidden Moisture in Stickered Stacks: The L5300 is compatible with the L722 Lumber Stack Probe, allowing you to reach deep within stickered stacks to identify hidden moisture that could lead to drying defects or grading issues.

Technical Specifications

  • Physical Size: L 9.37” x W 4.3” x H 3.8” (L 237mm x W 109mm x H 96.5mm)
  • Weight: 18 oz. (510 g)
  • Power: Two 9V Rechargeable Lithium-Ion Batteries
  • Battery Life: ~28 hours continuous use
  • Scanning Depth: 1.0” (25.4mm)
  • Measurement Range: 5% to 32% (dependent on species setting)
  • Specific Gravity Range: 0.30 - 0.75
  • Group Storage: 100 groups with 1000 readings per group
  • Display: 1.6” x 2.2” (40.6mm x 55.9mm)
  • Default Species: The meter can hold up to 55 user-editable species
  • Real-Time Clock: Records both time and date of all readings
  • Connectors: IP67-rated for dust-tight and waterproof operation
  • Auto Shut Down: After 1 minute of non-use

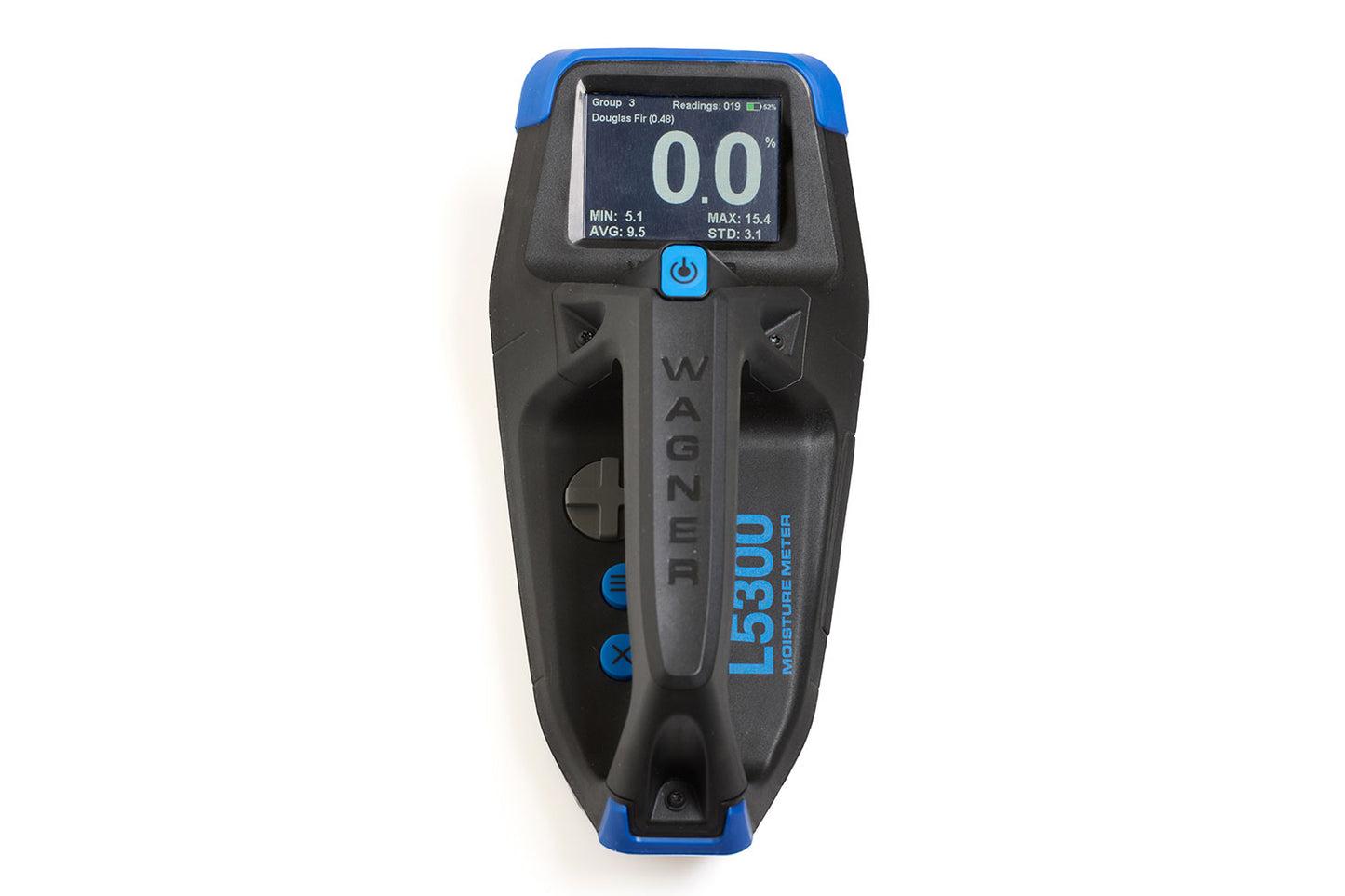

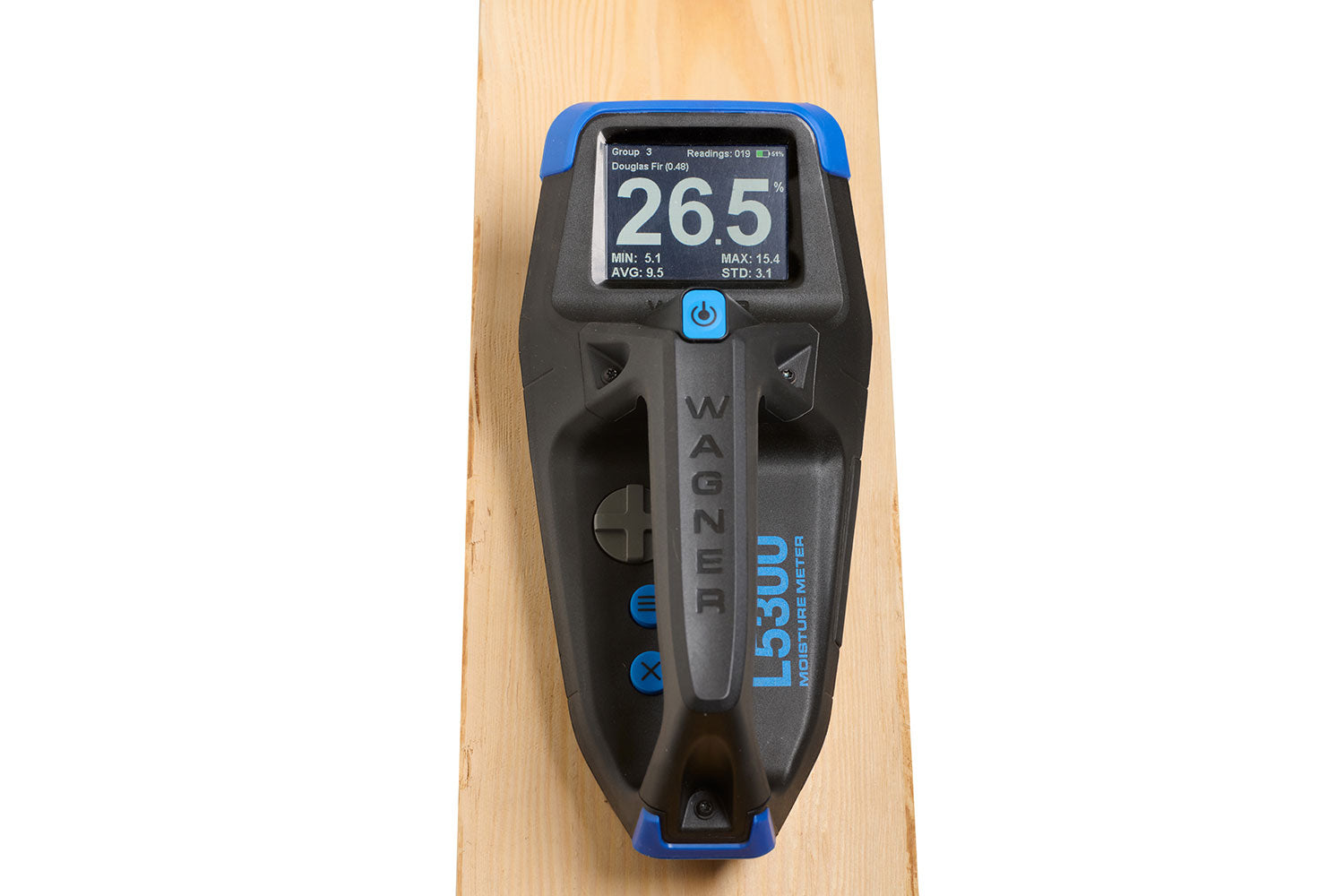

  • Statistical Display: Min, max, average, and standard deviation on screen
  • Histogram Option: Displays data graphically

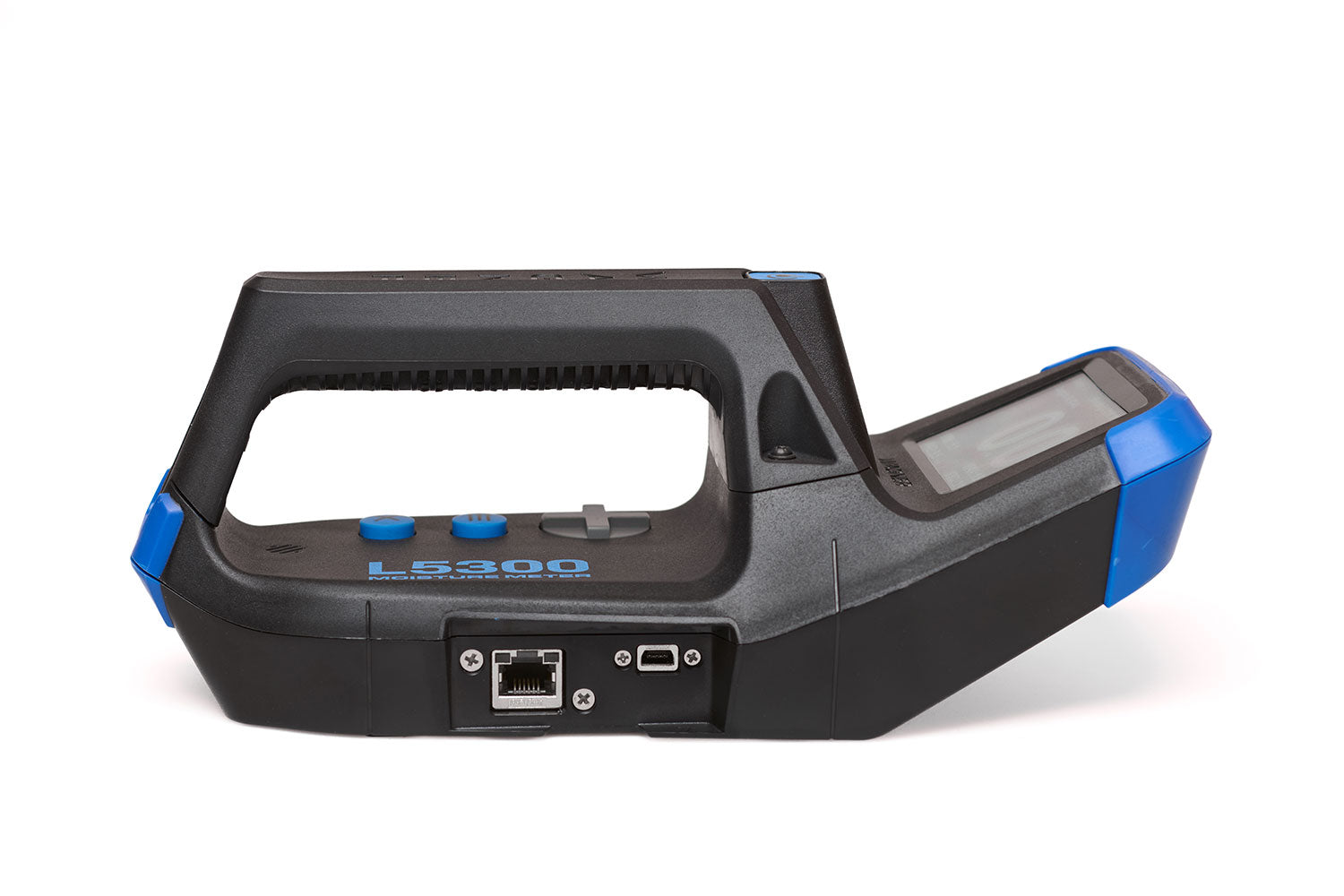

  • Comm Port: USB 2.0 Mini-B Port (IP67-rated)
  • Probe Port: 6P6C R/A connector (IP67-rated)
  • Operating Temperature: 30°F to 120°F (-1.1°C to 48.9°C)

Videos

WoodStat Pro Software



WoodStat™ Pro is Wagner Meters’ moisture data management software for the L5300 Industrial Handheld Wood Moisture Meter, available for Android, iOS, macOS, and Windows. Transfer readings via Bluetooth or USB, organize moisture data, manage custom species lists, and create and share reports from the yard, kiln, or office. iPhone and iPad connect via Bluetooth, while Android devices, Mac computers, and Windows PCs support both connection options. With tools for visualizing moisture variation, tracking trends, and identifying inconsistencies, WoodStat Pro helps manufacturers make informed drying decisions, improve quality control, and reduce costly waste. An optional AI Assistant offers additional analysis and reporting support when enabled in settings. Available features vary by platform. By turning moisture readings into practical insights, WoodStat Pro helps you improve efficiency, maintain product consistency, and protect profitability.

Download WoodStat Pro on the Apple App Store   Get WoodStat Pro on Google Play   Get WoodStat Pro from the Microsoft Store

App Store: iPhone, iPad and Mac  |  Google Play: Android  |  Microsoft Store: Windows

Learn How Woodstat Pro Can Benefit Your Bottom Line

Frequently asked questions

What makes the L5200 different from the L5300?

The L5300 adds Bluetooth and USB connectivity for transferring readings to WoodStat™ Pro on compatible mobile devices and computers, supporting moisture analysis, species management, and reporting. It also connects to the optional L722 Lumber Stack Probe for checking moisture deep within stickered lumber stacks. The L5200 provides stand-alone moisture measurement with onboard data storage, but without the connectivity or stack probe capabilities.

What is WoodStat™ Pro, and how does it work with the L5300?

WoodStat™ Pro is Wagner Meters’ moisture data management software, available for Android, iOS, macOS, and Windows. Connect your L5300 via Bluetooth or USB to transfer readings, organize moisture data, manage custom species lists, and create and share reports. Its analysis tools help you assess moisture variation, track trends, and support drying decisions and quality control. Available features vary by platform.

How do I use the L722 Lumber Stack Probe with the L5300?

Connect the L722 to the L5300 using either the legacy adapter with your existing probe cable or the streamlined blue coil cord, available for purchase separately, which connects directly without an adapter. When using the legacy adapter, secure the cable to the handle with the included strain relief strap. Refer to the L722 manual for detailed instructions.

How does a pinless meter like the L5300 measure moisture?

Unlike pin meters that use electrical resistance and puncture the wood, the L5300 uses IntelliSense electromagnetic wave technology to scan deep into the wood, up to 1 inch below the surface, without causing any damage.

Can I use it on 4x4 or thicker lumber?

Yes. For thicker material, simply scan all sides to ensure full moisture assessment.

How do I verify my L5300’s calibration?

Use the included On-Demand Calibrator (ODC) block to confirm accuracy. If readings differ from the block’s reference value, recalibration may be needed. For certified verification, you can use the NIST-traceable ODC with documented calibration.

How do I calibrate my L5300 meter?

Easily calibrate your L5300 meter with the included On-Demand Calibrator. Click here for a step-by-step tutorial on how to do so.

Does the L5300 retain data when batteries are removed?

Yes. The meter is equipped with non-volatile memory, which preserves stored readings even when the batteries are taken out.

Does orientation matter when taking a reading?

Yes. Always position the meter with the grain of the wood to ensure accurate readings.

Can I connect the L5300 to my phone or tablet?

Yes. The L5300 connects to WoodStat Pro on compatible iPhone, iPad, and Android devices. iPhone and iPad use Bluetooth, while Android devices support both Bluetooth and USB connections.

Can I use WoodStat Pro on a Mac or Windows computer?

Yes. WoodStat Pro is available for both macOS and Windows, with Bluetooth and USB connection options for the L5300.

Does WoodStat Pro include AI tools?

Yes. WoodStat Pro offers an optional AI Assistant for additional analysis and reporting support. It is turned off by default and can be enabled manually in settings.

How much moisture data can the L5300 store?

The L5300 stores up to 1,000 readings per Group, with 100 Groups available. Transfer your stored readings to WoodStat Pro for further organization, analysis, and reporting.

Can I choose how readings are organized when importing them?

WoodStat Pro’s Quick Import feature lets you import all readings into a single folder or organize them into separate folders. Available import options vary by platform.
