Wagner Meters

Floor Sentry® Wood Floor Data Logger

Floor Sentry® Wood Floor Data Logger

$189.00 USD
$189.00 USD
Sale Sold out

890-00080-001

Downloads

Secure Order   Free Shipping   1-year Warranty View full details

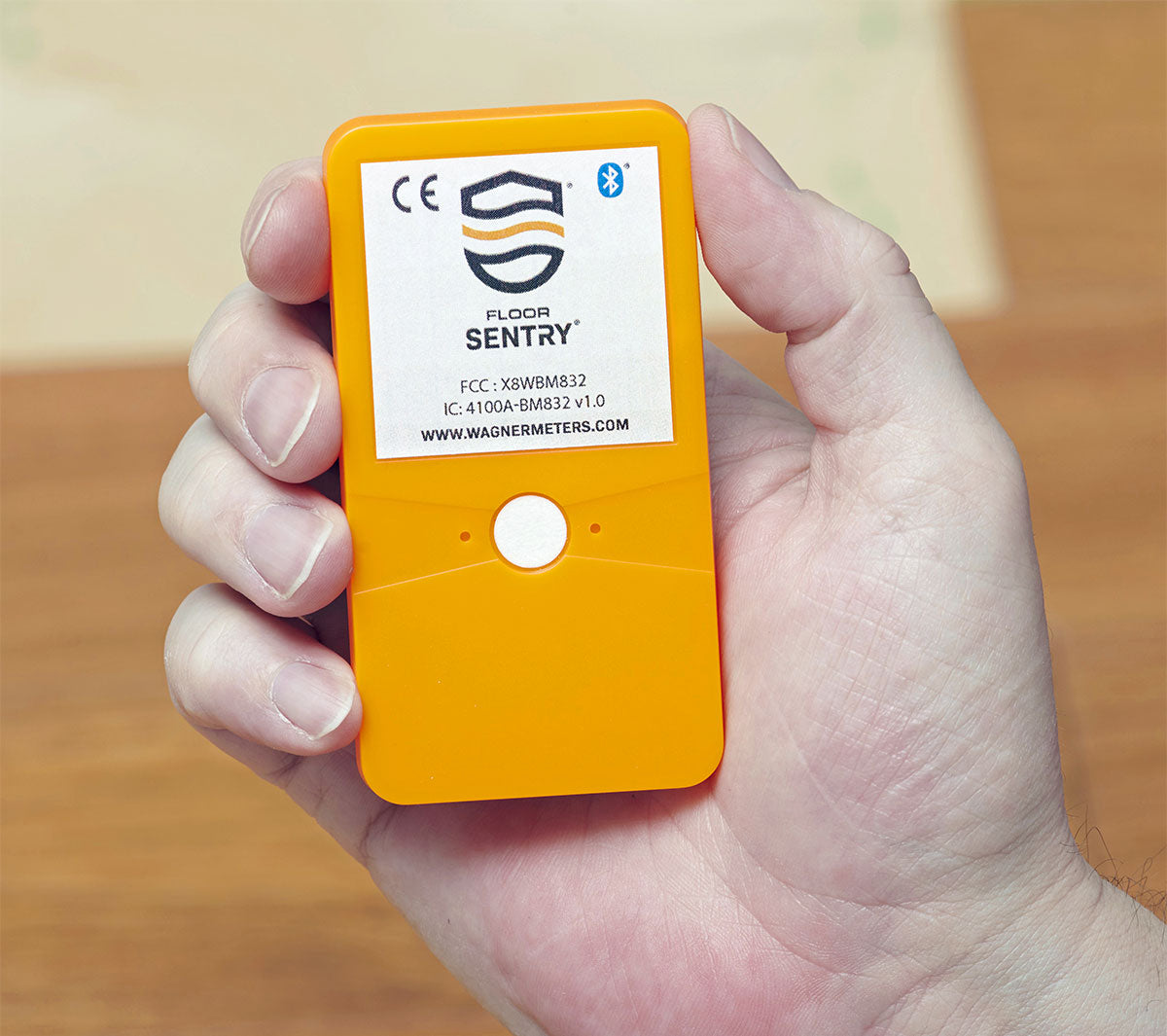

The Floor Sentry® embedded wood floor data logger is a card-sized device featuring temperature and relative humidity (RH) sensors to monitor and record up to 16,000 internal temperature and RH readings within your wood floor as well as the temperature and RH on the surface of the concrete subfloor or underlayment. Floor Sentry connects, via Bluetooth, to the free Wagner Sentry app for instant monitoring of floor or underlayment conditions, setting alarm threshold levels, viewing graphed progress, and more. This device can protect your installation liability and your wood floor investment.

Floor Sentry Features

Top and Bottom Sensors
Measure temperature and relative humidity (RH) within your wood floor and subfloor.

Smart App Integration
Store, organize, and send readings directly to the free Wagner Sentry app via Bluetooth®. Monitor wood floors effortlessly on your smart device.

Alerts or Notifications
When RH or temperature is outside the user-defined alarm threshold.

Data Collection and Storage
Monitor, record, and store over 16,000 internal temperature and relative humidity (RH) readings within your wood floors.

Long Battery Life
A pre-installed battery that can last up to 8 years (depending on the frequency of logging).

Comprehensive Wood Floor Monitoring with Smart Logger V2
Pairing your Floor Sentry and Smart Logger V2 to the Wagner Sentry app allows you to view both the in-floor conditions, enabling users to easily view, transmit, record data, and even send reports via email.

1-Year Warranty
With Wagner’s 1-year warranty, you can trust the Floor Sentry to deliver consistent, precise readings for years to come.

Lifetime Customer Support
When you choose to purchase a product with Wagner Meters, you receive more than just the product, but lifelong customer support that will help satisfy your needs and troubleshooting.

Floor Sentry Benefits

  • Protects flooring installations from potential moisture risk.
  • Reduces liability and costly callbacks.
  • Teaches homeowners how to properly care for their wood floor investments.
  • Having a “smart floor” can give you a competitive edge in the flooring industry, allowing installers and homeowners the opportunity to monitor and prevent moisture damage.

How to Install Floor Sentry
Step 1

Step 1

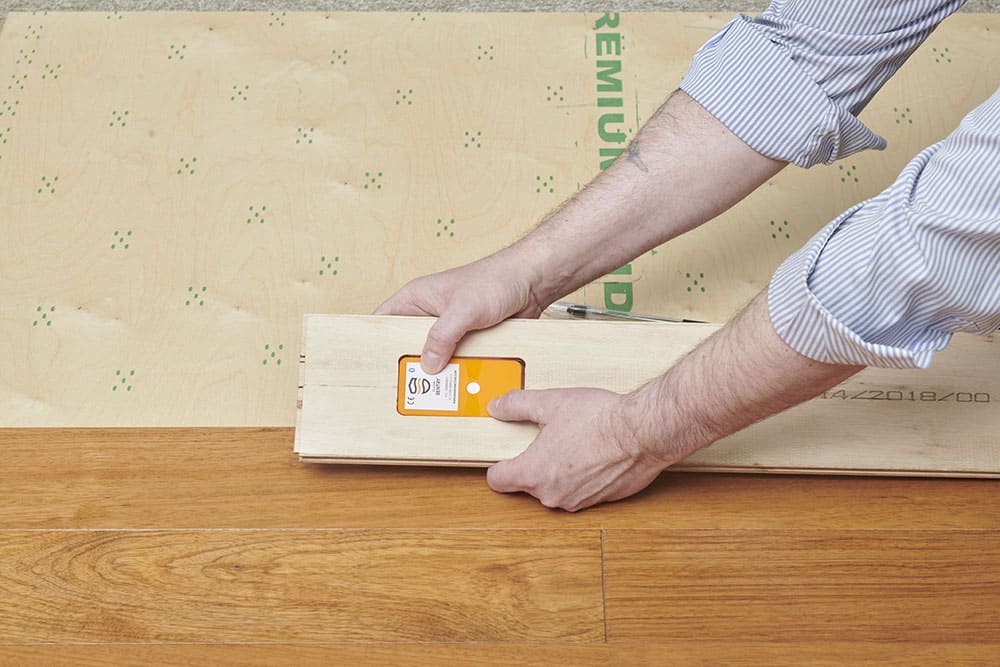

INSTALL by using a router to carve out a small section under a flooring plank and place the Floor Sentry into the routed area.
step 2

Step 2

CHOOSE the best location to place your Floor Sentry device. Consult the manual to help determine a strategic location for placement.
step 3

Step 3

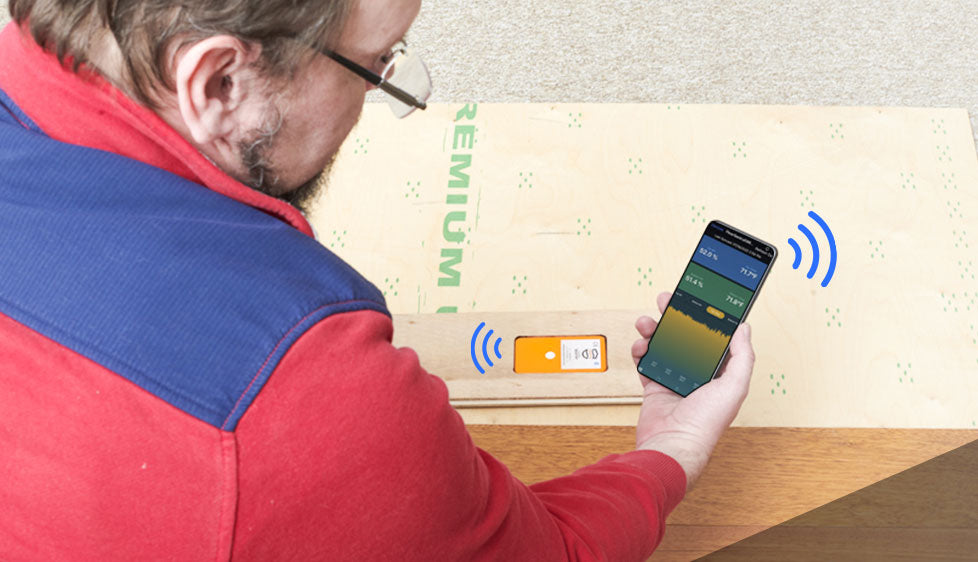

PAIR your device with the complementary Wagner Sentry app to configure it for monitoring RH and temperature, set alarm thresholds, and much more.

Technical Specifications

Frequency: 2.4 GHz

Protocol: BLE 5

Typical Reading Range: up to 20 ft or 6 meters

Dimensions: 51 mm x 95.454 mm x 9 mm

Weight: 37.75 g, 1.33 oz

Lifetime of Battery Pack: Up to 8 years (depending on frequency of logging)

Battery Health Indicator: Monitors battery status within the app

Storage Capacity: 16,384 readings

Measurement Interval: 1 second to 136 years

Mobile App Compatibility: Wagner Sentry App

Warranty: 1-year

Sensor Specifications

Relative Humidity - Accuracy Tolerance: ±3% RH (typ.)

Relative Humidity - Resolution: 0.1% RH

Temperature - Accuracy Tolerance: ±0.1° C (typ. 20° C to 60° C)

Temperature - Resolution: 0.1° C (typ.)

Temperature -  Repeatability: 0.04° C (high, typ.)

Customer Success Stories

Floor Sentry—A Game Changer in Wood Floor Protection
“It’s a system that works really well with how we do floors, and I like to be able to have that control and also monitoring capability after [installation].” - Lucas Huffaker, Huffaker Flooring in Boise, Idaho (USA)
Read More

Videos

Explore the Floor Sentry

Apps

The Smart Logger V2 monitor incorporates the latest Bluetooth® technology and works in tandem with the Wagner Sentry app, which can be downloaded for free at the Apple Store or Google Play. The app connects the Smart Logger V2 monitor through a mobile device’s Bluetooth (Android or iOS devices), enabling users to easily transmit and record data, and even send reports via email.

Apple App  Android App

The Wagner Sentry app also integrates with the Smart Logger V2, an ambient conditions data logger. By pairing your Smart Logger V2 and Floor Sentry to the Wagner Sentry app, you can view both the ambient and in-floor conditions simultaneously.

Frequently asked questions

Why Floor Sentry?

Installing a Floor Sentry with your new wood floor helps protect your investment. Wood flooring may be at risk of damage or catastrophic failure if exposed to unfriendly ambient conditions. This unwanted exposure can occur either from inside your home or building or from the underside of the flooring (what is often called the subfloor).

How Do I Use The 1-Year Warranty?

If for some reason the Floor Sentry fails, the best way to submit a warranty request is to contact our customer service to find the best solution for your replacement. To contact our customer service please email info@wagnermeters.com or call (800) 634-9961.

What Does Floor Sentry Measure?

The Floor Sentry operates directly inside your wood floor, monitoring temperature and relative humidity (RH).

Can I Customize Alerts?

Yes, you will need to use the Floor Sentry device with the Wagner Sentry app to customize and set preferred/recommended readings. If either the temperature or the RH falls outside your desired range for proper floor care and/or avoiding potential floor damage, the Floor Sentry alerts you automatically, delivering notifications wirelessly to your mobile device. You must be within Bluetooth range to receive Floor Sentry notifications.

How Many Floor Sentry’s Do I Need?

Place one Floor Sentry for every 1,000 square feet, and at least one on each story or level. If the floor has radiant heating zones, then install one Floor Sentry for each heating zone.

How Do I Connect to the Wagner Sentry App?

Step 1: Install the Floor Sentry in your wood flooring.

Step 2: Download the Wagner Sentry app from either the Apple App Store or Google Play.

Step 3: Open the app, give your Floor Sentry device its own unique name, adjust the default settings (as needed), click the Device Installed button on the Device Settings screen, and you are ready to begin monitoring temperature and RH at whatever frequency you desire.

Can I Install Floor Sentry Within Thin Wood Planks?

Wagner Meters does not recommend installation in boards with thicknesses less than ½ inch.
