L5200 Industrial Hand-held Wood Moisture Meter

L5200 Industrial Hand-held Wood Moisture Meter

$1,650.00 USD
$1,650.00 USD
Sale Sold out
Calibrator

890-05200-001

Downloads

Secure Order   Free Shipping   1-year Warranty View full details

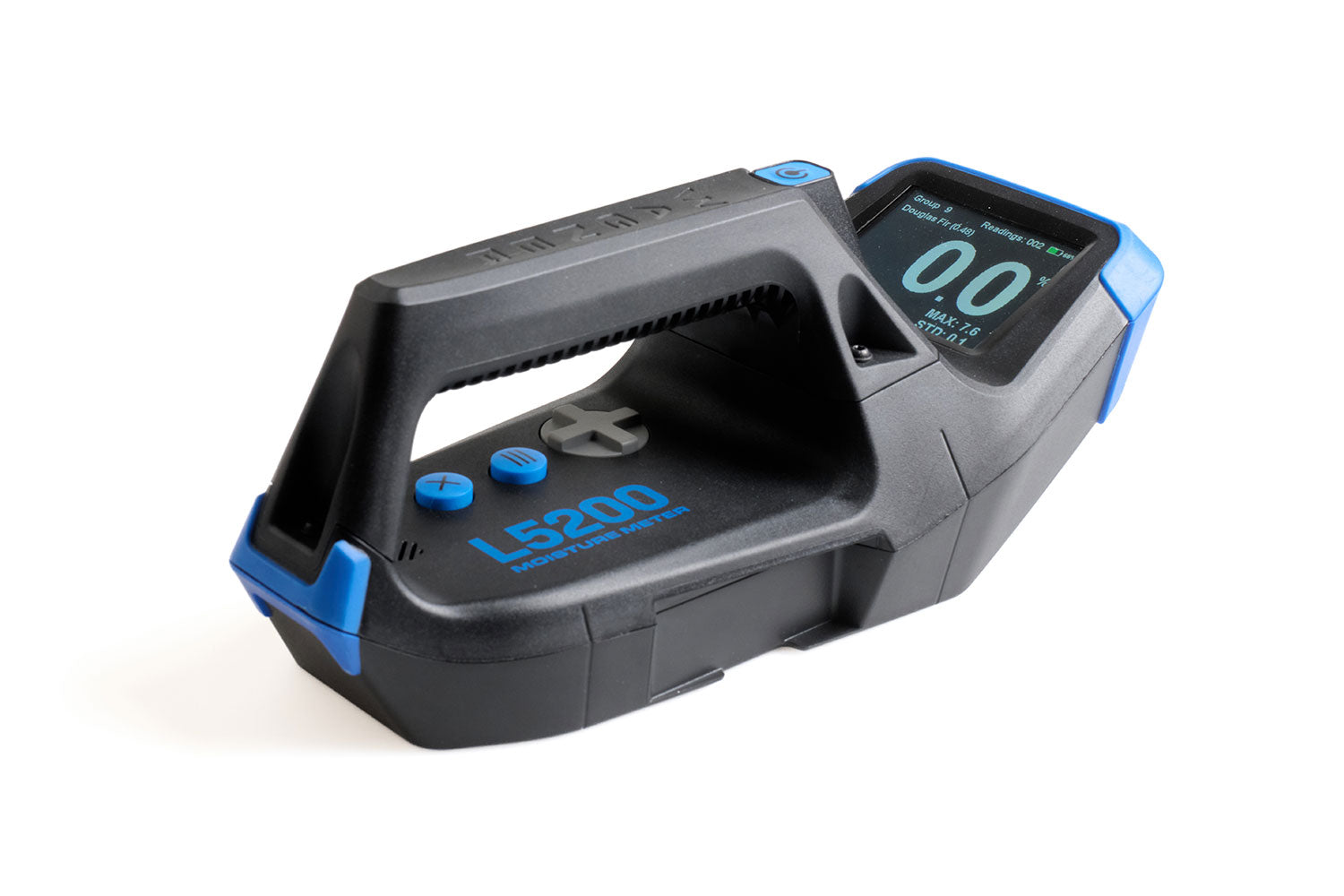

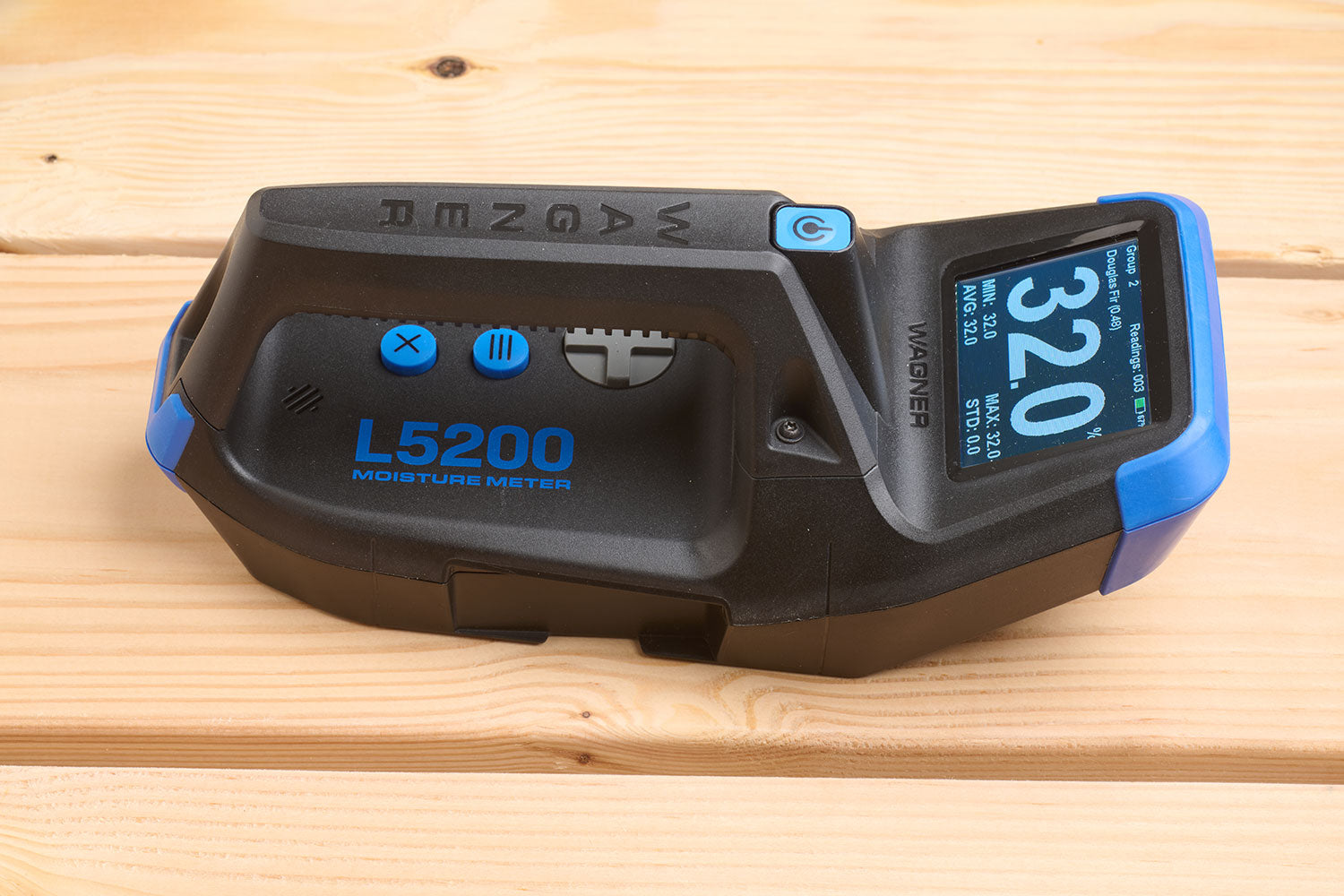

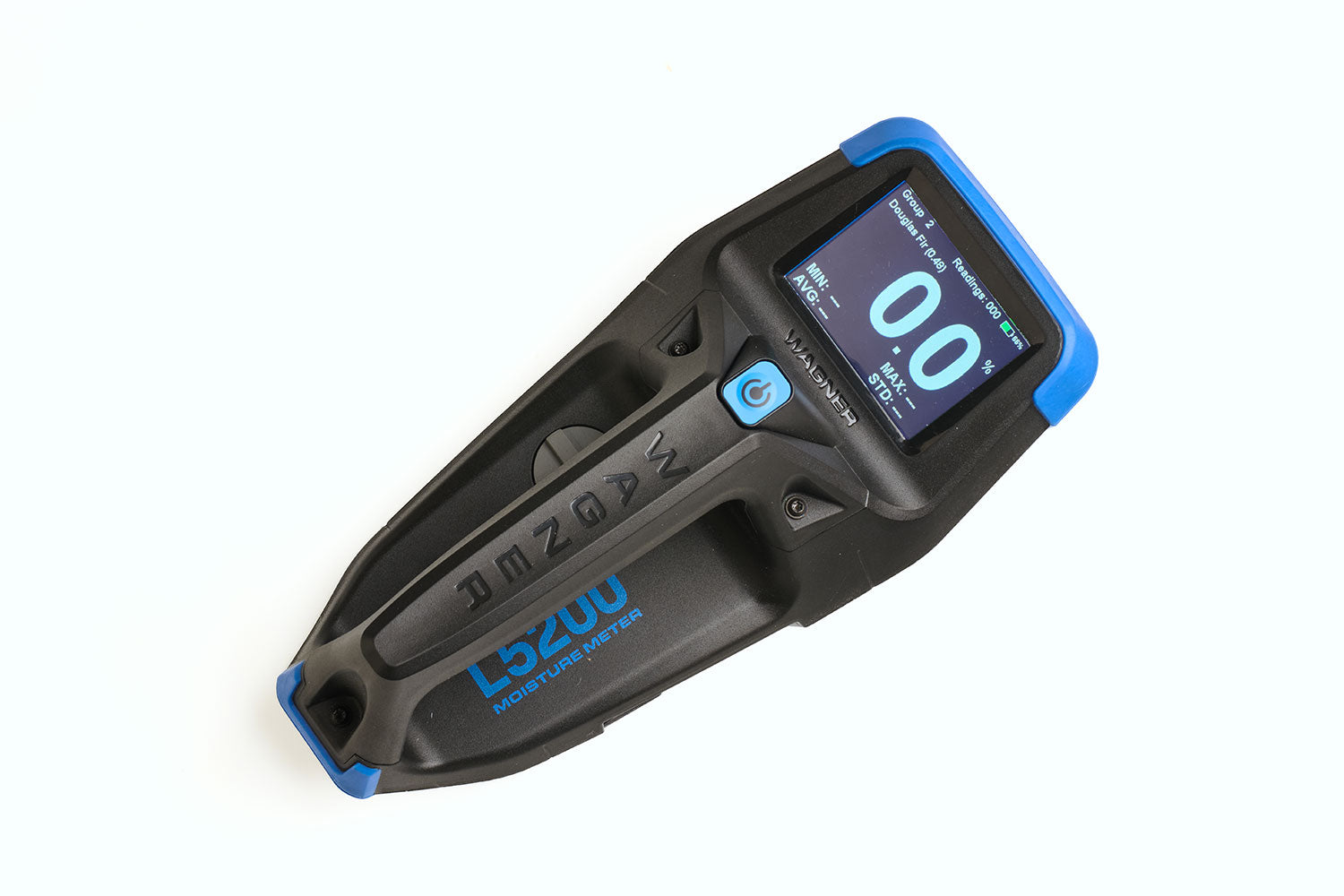

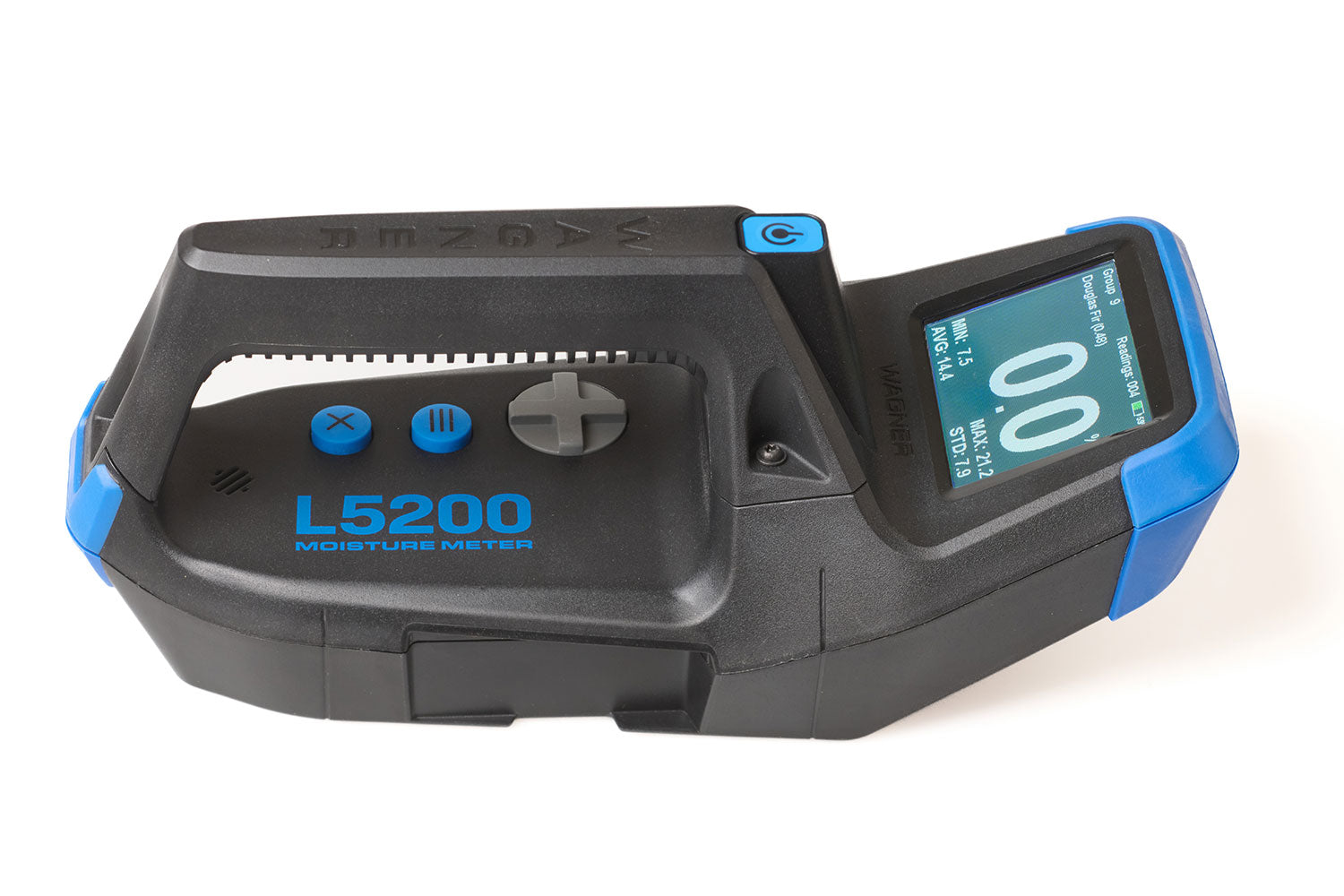

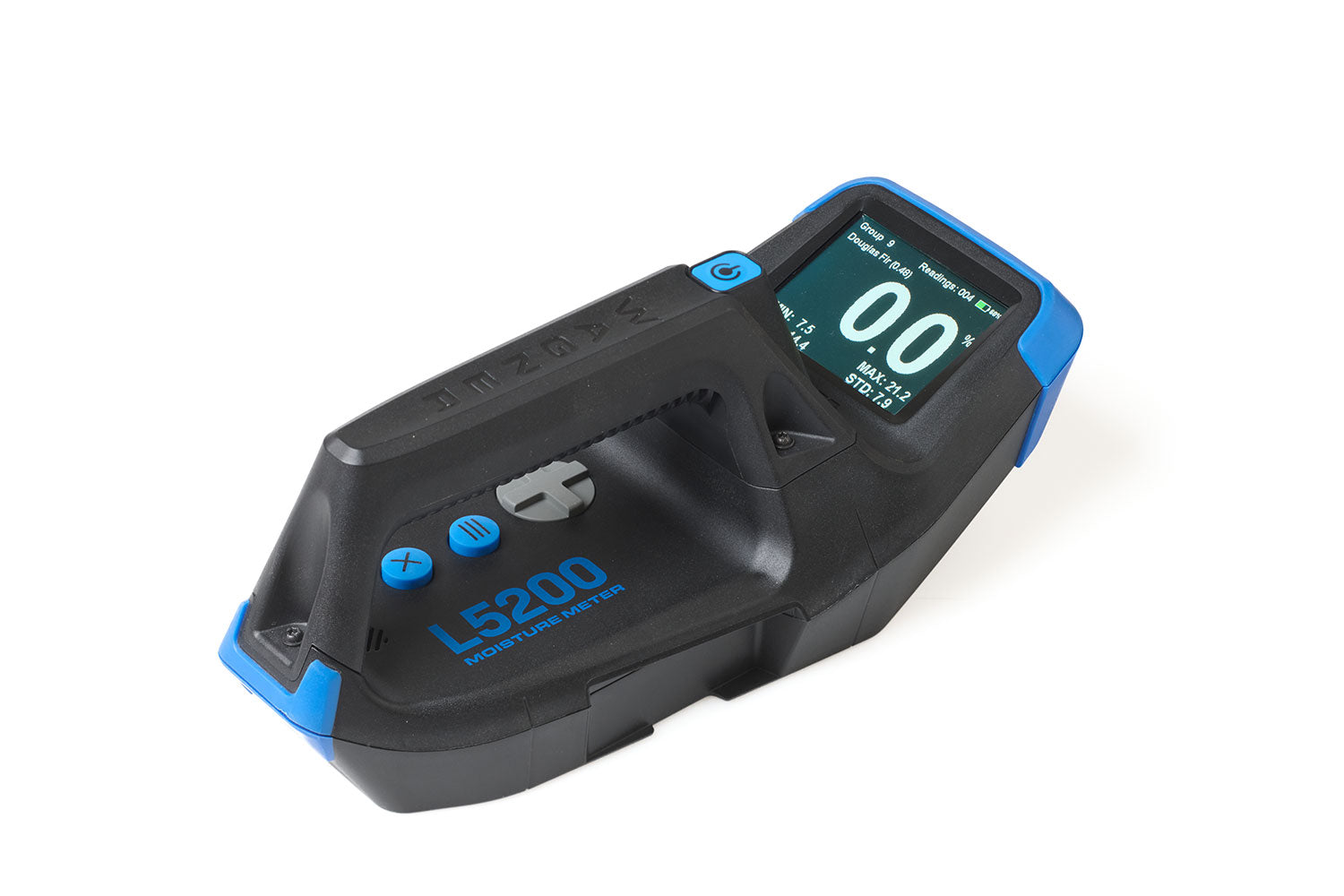

The Wagner Meters L5200 is a high-performance, hand-held moisture meter built for the demands of sawmills, kilns, and wood product manufacturing. Designed for durability and accuracy, the L5200 delivers non-destructive moisture readings up to 1 inch deep, scanning through the surface to measure moisture in the wood, not just on it.

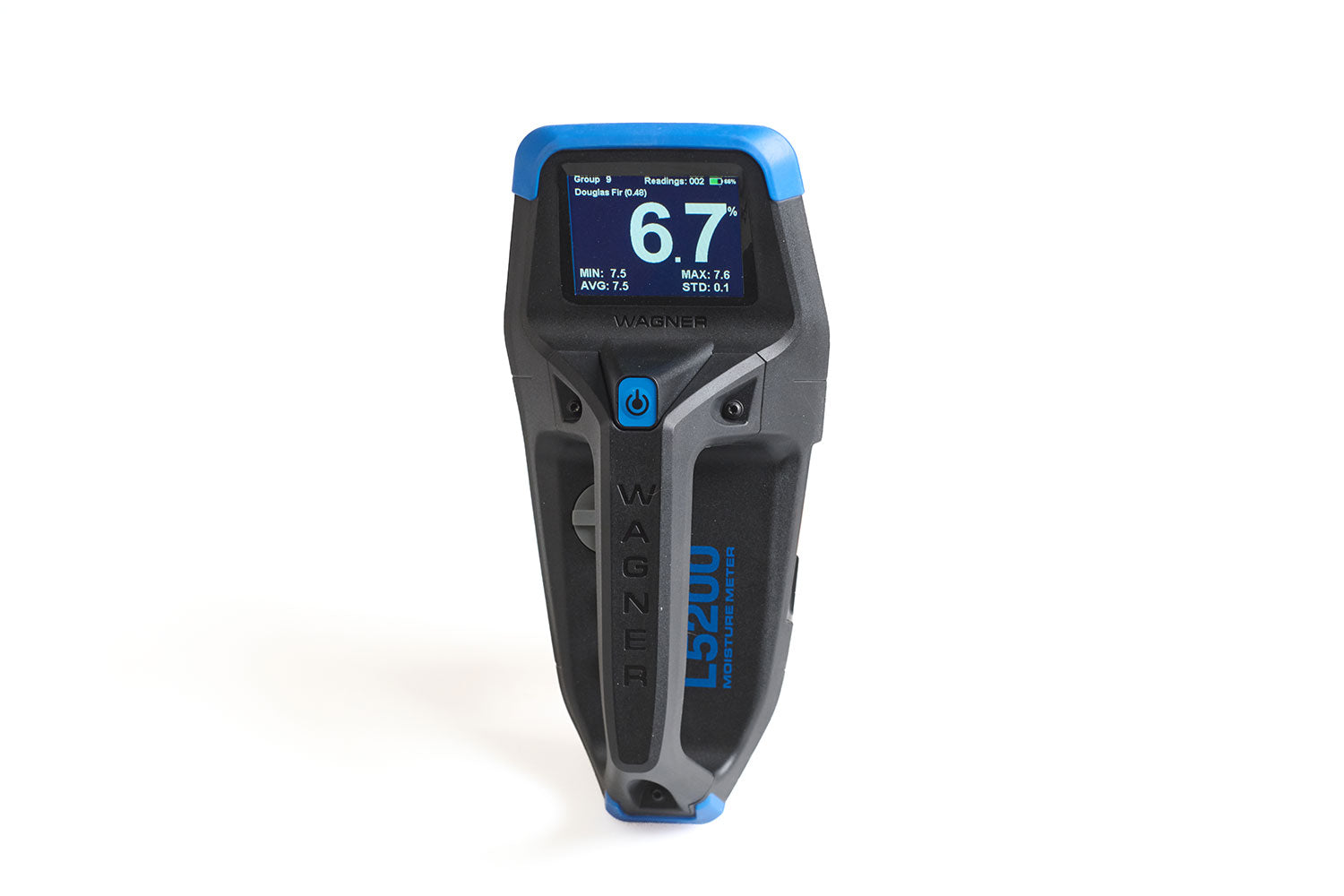

Equipped with a large, easy-to-read display, the L5200 includes histogram mode for visualizing moisture variations across multiple readings and supports statistical views showing min, max, average, and standard deviation. With 46 factory-loaded wood species (and space for up to 55), you can tailor your readings to the exact material you're working with.

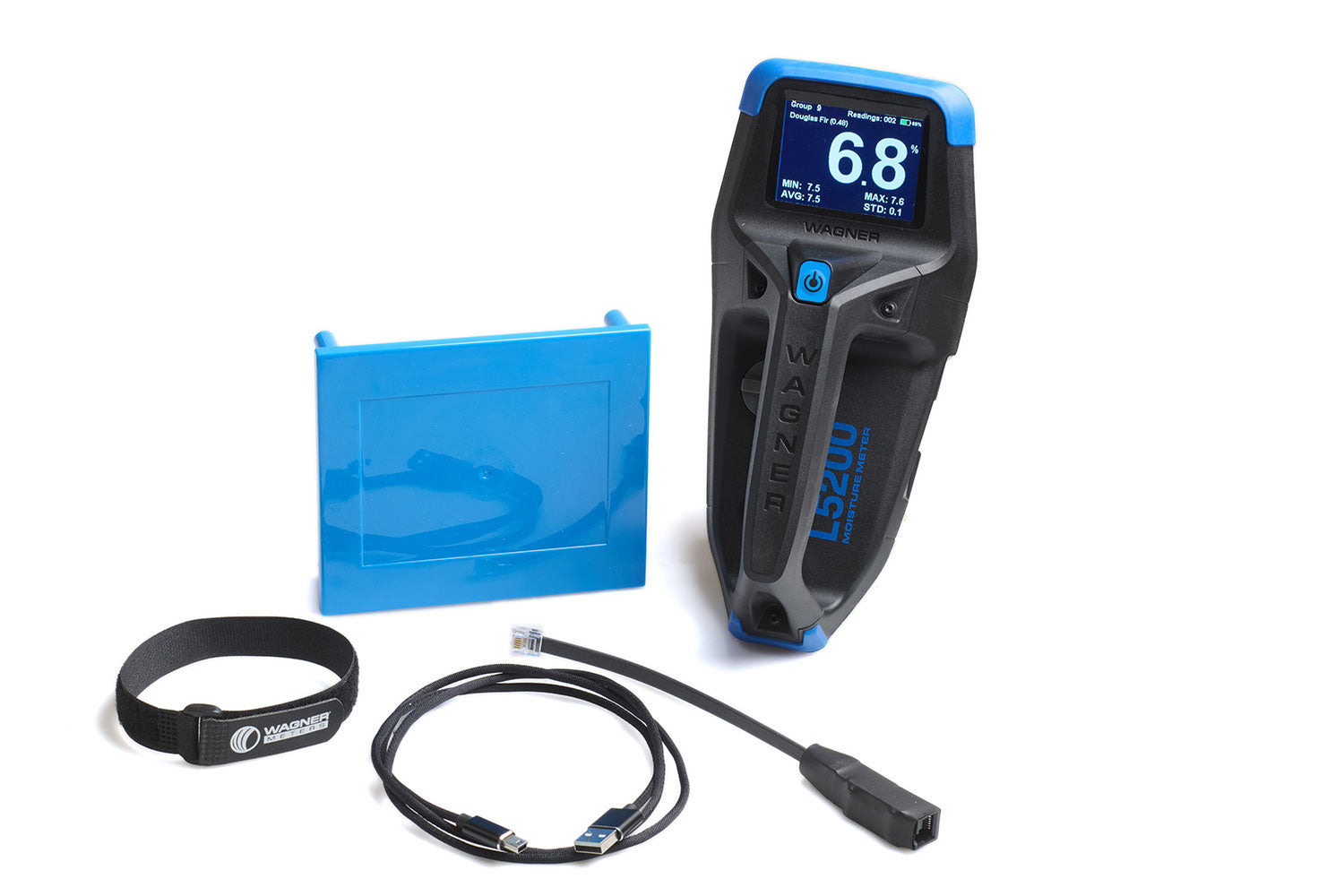

The L5200 stores up to 1,000 readings across 100 groups, allowing you to organize and monitor data by location, batch, or job. It runs on two rechargeable 9V lithium-ion batteries and includes an On-Demand Calibrator for quick, reliable accuracy checks or on-site calibration.

With no external probes or software required, the L5200 offers a streamlined, stand-alone solution for professionals who need fast, accurate, and dependable moisture measurement in the field.

L5200 Features and Benefits

Essential for Quality Control: Designed for sawmills, kilns, and wood product manufacturers looking to reduce waste, improve yield, and ensure consistent moisture levels across every stage of processing.

Built Tough for Industrial Environments: Durable and dependable, this moisture meter is engineered to perform in demanding lumber facilities and high-throughput production lines.

1-inch Deep Moisture Readings: Get fast, accurate readings of wood moisture content up to 1 inch deep with Wagner’s IntelliSense pinless sensor technology, ideal for thicker lumber and industrial drying operations.

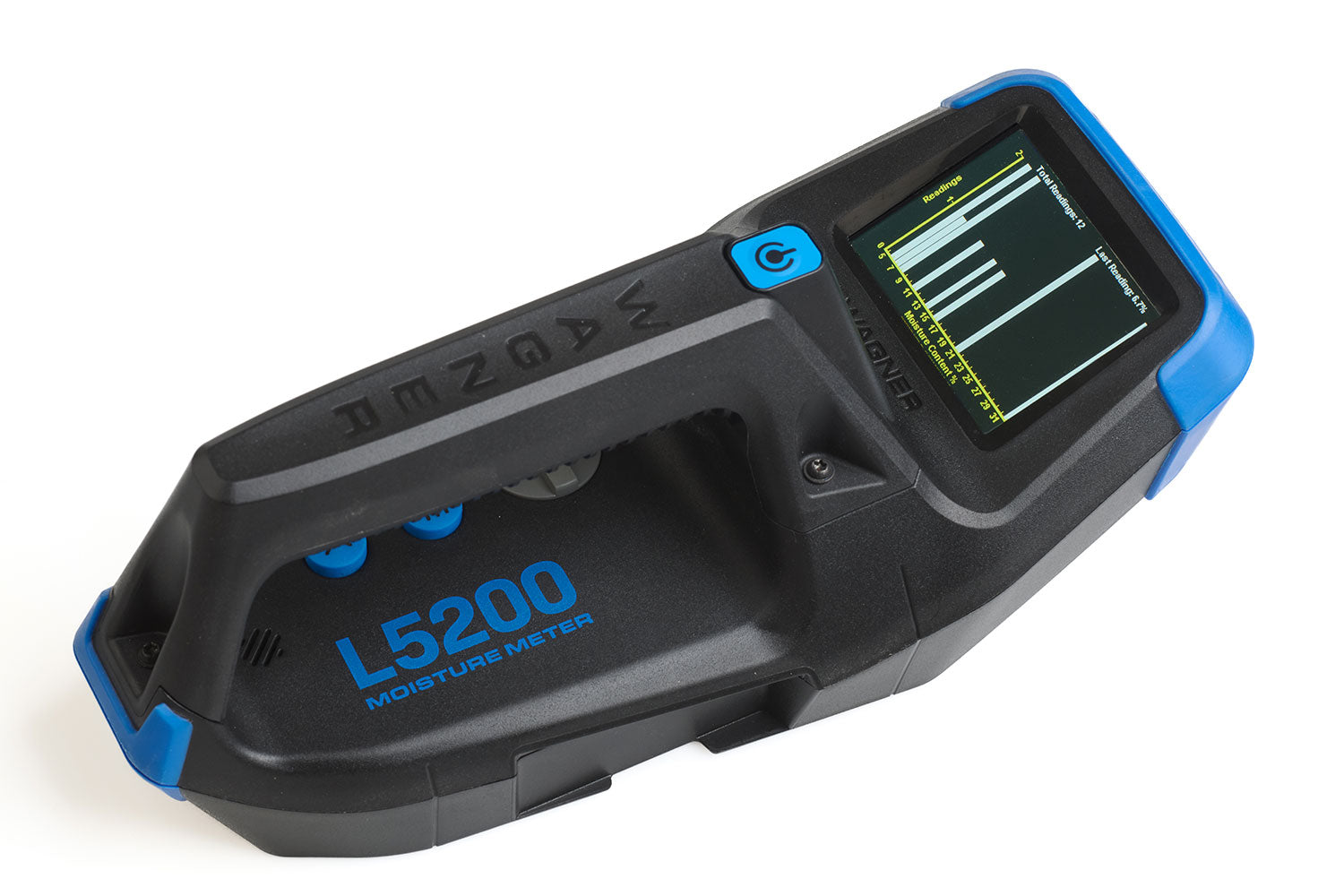

Histogram Display for Quick Moisture Analysis: Visualize moisture variation at a glance with the L5200’s intuitive histogram mode. Spot inconsistencies and act fast to prevent defects or waste.

Large Wood Species Library: Comes preloaded with 46 wood species and supports up to 55, giving you tailored accuracy for your specific materials.

Portable & Stand-Alone Operation: No external probes, accessories, or software required - perfect for mobile use and quick inspections in the field.

Advanced Data Storage: Store up to 1,000 readings across 100 groups.

Included On-Demand Calibrator: Comes factory-calibrated for convenient field verification - no need to send the meter away. For operations requiring traceable calibration, purchase the NIST-traceable On-Demand Calibrator to support ISO compliance and internal quality control protocols.

Quick Import Feature: Choose to import all readings into a single folder or organize them into separate folders, streamlining your workflow.

Technical Specifications

  • Physical Size: L 9.37” x W 4.3” x H 3.8” (L 237mm x W 109mm x H 96.5mm)
  • Weight: 18 oz. (510 g)
  • Power: Two 9V Rechargeable Lithium-Ion Batteries
  • Battery Life: ~28 hours continuous use
  • Scanning Depth: 1.0” (25.4mm)
  • Measurement Range: 5% to 32% (dependent on species setting)
  • Specific Gravity Range: 0.30 - 0.75
  • Group Storage: 100 groups with 1000 readings per group
  • Display: 1.6” x 2.2” (40.6mm x 55.9mm)
  • Default Species: The meter can hold up to 55 user-editable species
  • Real-Time Clock: Records both time and date of all readings
  • Connectors: IP67-rated for dust-tight and waterproof operation
  • Auto Shut Down: After 1 minute of non-use
  • Statistical Display: Min, max, average, and standard deviation on screen
  • Histogram Option: Displays data graphically
  • Operating Temperature: 30°F to 120°F (-1.1°C to 48.9°C)

Videos

Frequently asked questions

What makes the L5200 different from the L5300?

The L5300 offers advanced connectivity and compatibility features. It is compatible with the L722 Lumber Stack Probe to measure hidden moisture deep within stickered lumber stacks, and it includes a USB data port for seamless integration with WoodStat Pro software for data management and quality control. The L5200 is not compatible with the L722 Lumber Stack Probe or WoodStat Pro Software.

How does a pinless meter like the L5200 measure moisture?

Unlike pin meters that use electrical resistance and puncture the wood, the L5200 uses IntelliSense electromagnetic wave technology to scan deep into the wood, up to 1 inch below the surface, without causing any damage.

Can I use it on 4x4 or thicker lumber?

Yes. For thicker material, simply scan all sides to ensure full moisture assessment.

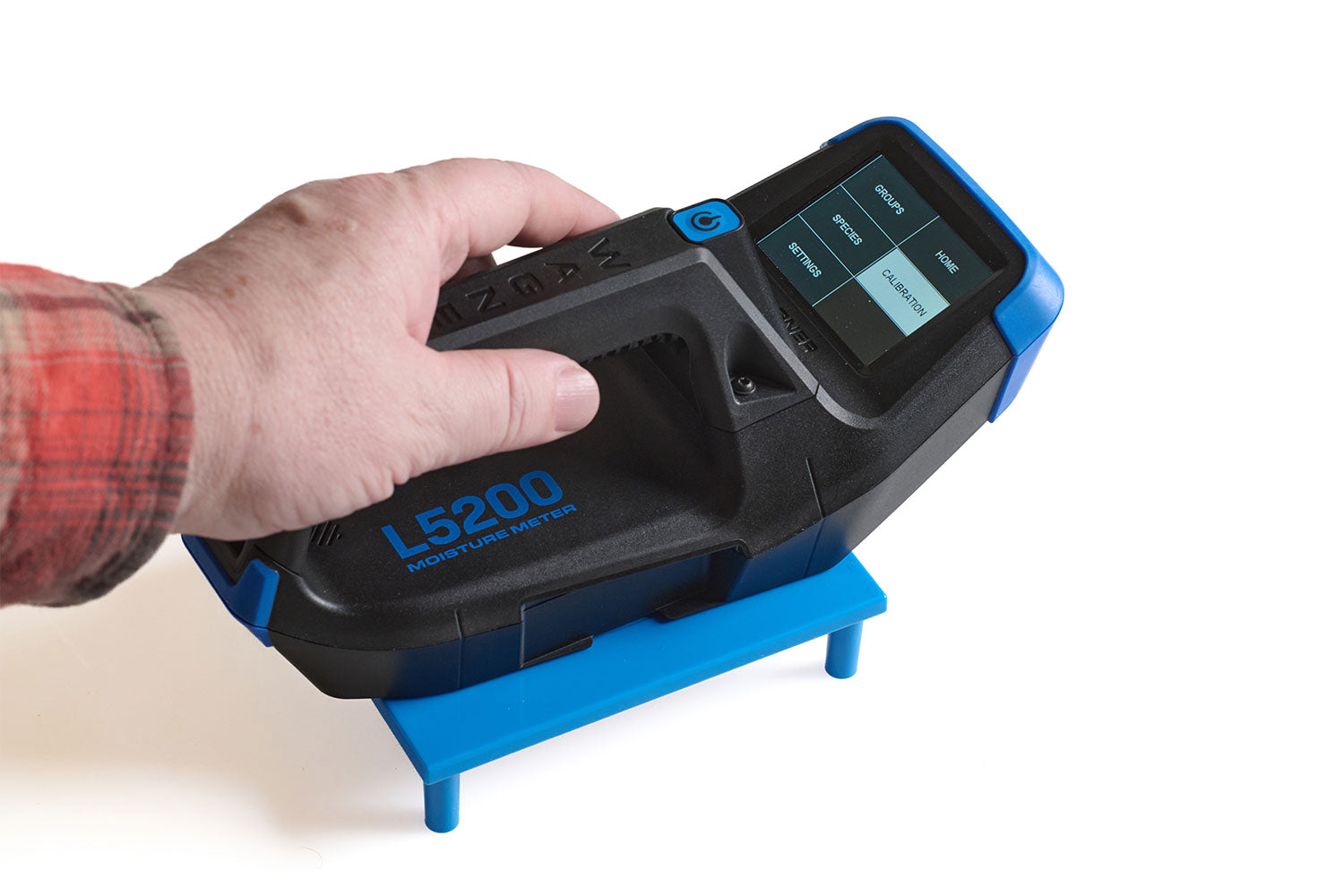

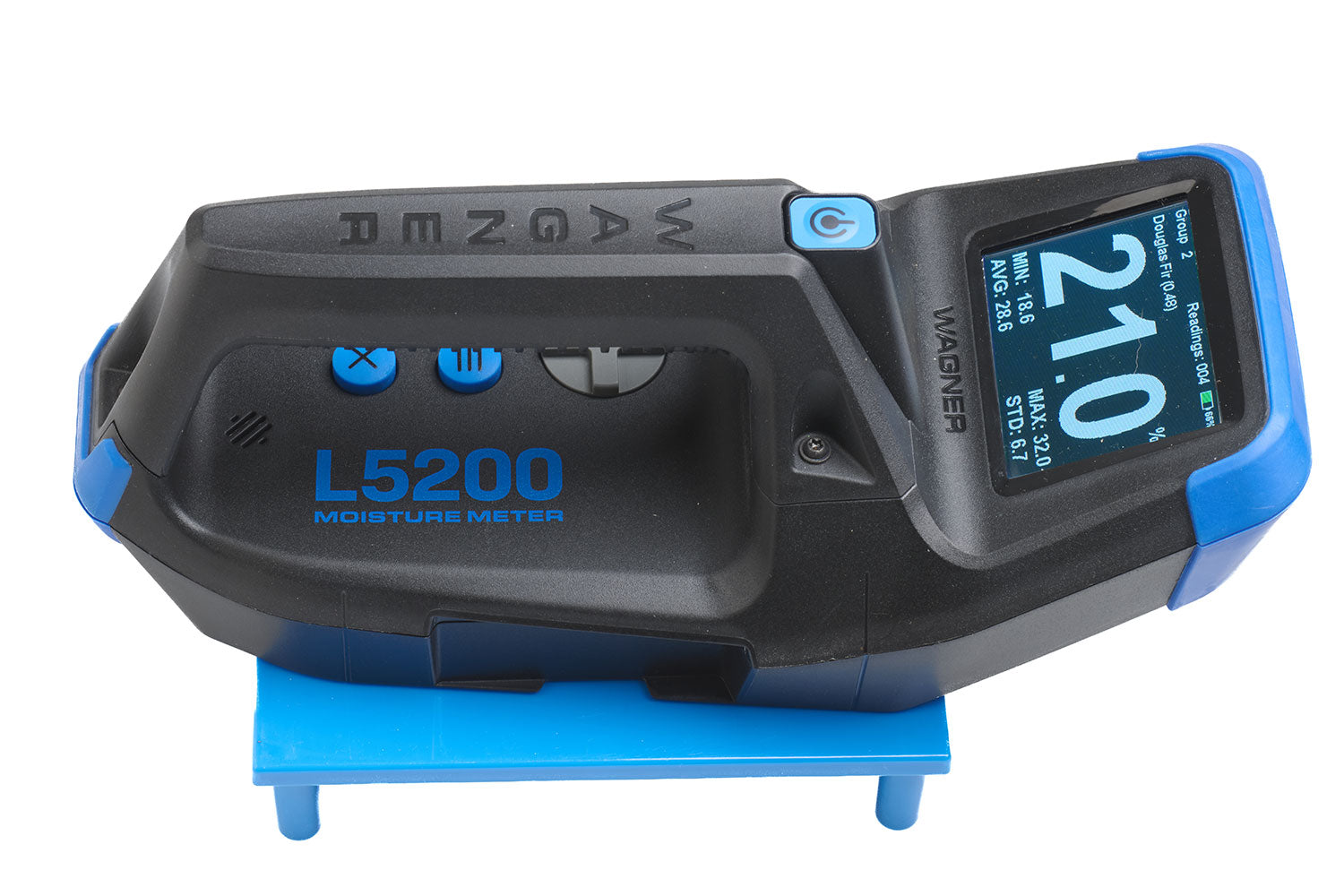

How do I verify my L5200’s calibration?

Use the included On-Demand Calibrator (ODC) block to confirm accuracy. If readings differ from the block’s reference value, recalibration may be needed. For certified verification, you can use the NIST-traceable ODC with documented calibration.

How do I calibrate my L5200 meter?

Easily calibrate your L5200 meter with the included On-Demand Calibrator. Click here for a step-by-step tutorial on how to do so.

Does the L5200 retain data when batteries are removed?

Yes. The meter is equipped with non-volatile memory, which preserves stored readings even when the batteries are taken out.

Does orientation matter when taking a reading?

Yes. Always position the meter with the grain of the wood to ensure accurate readings.
