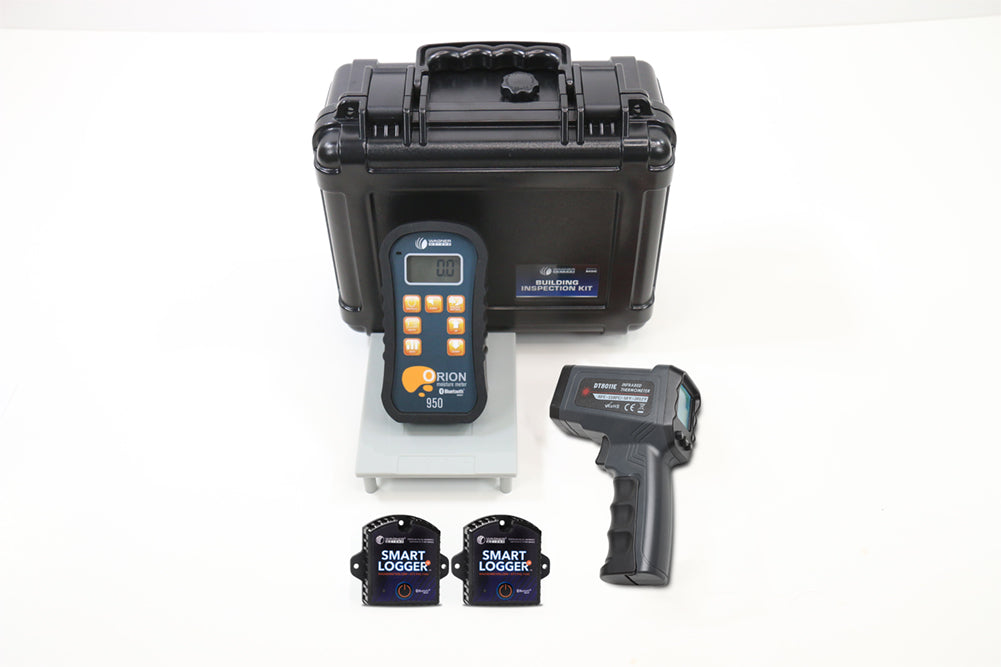

WBI200+ Building Inspection Starter Kit

Dimensions with Boot:

• Length: 5.75 inches (146mm)
• Width: 3.0 inches (76mm)
• Thickness: 1.0 inches (25mm)

Weight with Boot:

• 7.2 oz. (204g)

Scanning Area:

• 2.0 inches (50mm) x 2.5 inches (63mm)

Power:

• 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)

Auto Power Shut-Down:

• 60 seconds

Dual Depth Measurement:

• Appropriate for reading into the wood to .25” (6.4mm) in depth in the shallow scan mode
• Appropriate for reading into the wood to .75” (19mm) in the deep scan mode

Internal Data Storage Capacity:

• 100 saved readings

Measurement Ranges:

• MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting)
• Relative Measurement Scale: 0-100
• Ambient Temperature: 32˚F to +110˚F (0˚C to +43˚C)
• Ambient Relative Humidity: 0% to 100%
• Equilibrium Moisture Content Measurement Range: 0-40.7%
• Dew Point: -85˚F to +110˚F (-65˚C to +43˚C)
• Absolute Humidity: 0 to 431.1 lb/ft (0 to 61.6 kg/m)

Specific Gravity Range for Wood Species:

• 0.20-1.0 SG

Storage Temperature and Humidity:

• +50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing

Operating Temperature Range:

• +32˚F to +110˚F (+0˚C to +43˚C)

Backlight:

• Includes adjustable backlit display

Signal Transmission Frequency: 2.4GHz

Protocol Standard: BLE 5

Modulation Mode: GFSK

Advertisement Interval: 2 seconds

Output Power: 0 dBm

Communication Rate: 1 Mbps

Transmission Distance: Up to 150 ft (46 meters)

Storage: 16,384 data measurements

Operating Temperature Range: -22°F (-30°C)~140°F (60°C)

RH Measurement Range: 0~100%RH

Temperature Measurement Accuracy: ±0.1°

RH Measurement Accuracy: ±1.5%RH

Net Weight: 1 ounce (30g)

Dimensions: 2.4 in. (60mm) x 2.6 in. (67mm) x 0.6 in. (16mm) – Height, with double-stick adhesive pad: 0.8 in. (20mm)

Material: ABS, PCB, FR4

Power Source: Battery Powered

Measurement Range:-25.6° F to 707° F (-32° C to 375° C)

Accuracy: ±2% of reading

Distance to Spot Ratio: 12:1

Emissivity: Preset at 0.95

Response Time: ≤500ms

Repeatability: ±1% of reading or ± 2° F (1° C), whichever is greater

Battery: 9V

Dimensions: 6 in x 5 in x 1.5 in

Orion Pinless meters send out electromagnetic waves from the sensor pad, creating a field that scans the area underneath. The meter then interprets the signal it receives back to provide an accurate moisture content reading. Unlike pin-style meters that measure in one small spot, pinless meters scan a larger area, giving you a more complete picture of the wood's moisture content.

On top of its game-changing wood moisture measurements, the Orion 950 Smart Dual Depth Moisture Meter also has a built-in relative measurement mode. This feature allows you to measure moisture in non-wood building materials such as drywall, plywood, OSB, and MDF.

The Wagner Meters Smart Logger™ V2 is a low-energy temperature and humidity data logger featuring the latest Bluetooth® 5.0 technology and a NRF52832 chip. It collects temperature and relative humidity readings from the surrounding environment and records them as historical data. The Smart Logger V2 can store up to 16,384 temperature and relative humidity measurements. Any smartphone or smart device with Bluetooth 5.0 or above can download and install the accompanying app to store and monitor the temperature and relative humidity of the environment as conditions change.

There are a handful of potential applications for the Smart Logger V2 to provide value monitoring ambient conditions here are a few:

1. Construction/building environmental monitoring
2. Wood products shipping and transport
3. Perishable items (food, medicine, flowers, etc.) transport
4. Refrigerated storage and shipping
5. Archive rooms/vaults
6. Laboratory testing and storage rooms
7. Museum displays and storage

Wagner Meters is a trusted family-owned business that has set the standard for accuracy and reliability in the moisture measurement industry for over half a century. Our team of moisture testing experts are dedicated to helping you find the best solutions for your needs. When you choose Wagner, you're not just investing in a product—you're partnering with a company that values quality, customer care, and your success.
