Wagner Meters

WFP450+ Rapid RH® L6 Professional Flooring Installer Kit with Bluetooth® DataGrabbers

WFP450+ Rapid RH® L6 Professional Flooring Installer Kit with Bluetooth® DataGrabbers

Regular price $2,089.00 USD
Regular price Sale price $2,089.00 USD
Sale Sold out
Temperature Unit

SKU:880-R0WFP-451

Secure Order   Free Shipping   1-year Warranty View full details

The WFP450+ Rapid RH L6 Professional Flooring Installer Kit provides everything you need for fast, accurate moisture testing of concrete, wood, and other wood building materials with automatic data logging, monitoring, and reporting of job sites.

The Rapid RH Family

Rapid RH L6 Family

Maximize Your Freedom with Simple Concrete Moisture Testing

L6 total reader
Total Reader
Quickly reads concrete moisture, temperature, and relative humidity.
C555 Concrete Moisture Meter
C555 Concrete
Moisture Meter

This pinless concrete moisture meter measures concrete, brick, and gypsum, allowing you to easily identify wet spots or potential problem areas.
DataGrabber Data Logger
Rapid RH L6 DataGrabber
with Bluetooth®

An optional accessory to automate your readings, saving time and effort.
Rapid RH L6 Smart Sensor
L6 Smart Sensors
Highly accurate relative humidity sensor that takes and stores your readings.
True Remote Monitoring
True Remote Monitoring™ System
View real-time jobsite conditions 24/7 365 days a year — from anywhere in the world.
DataMaster L6 Mobile App
DataMaster™ L6 App
Easy to use app for storing and reporting your data.
Integrated Data Storage

Integrated Data Storage
Allows for easy record-keeping with highly accurate moisture measurements.

Automatic Data Logging

Automatic Data Logging
Take and store readings automatically, saving time and increasing efficiency.

Cost Effectiveness

Cost Effectiveness
Offers the lowest cost per test in the industry.

Smart App Integration

Smart App Integration
Complete data integrity, and track job site mapping directly to the free DataMaster L6 app via Bluetooth®. Manage projects effortlessly on your smart device.

No Calibrations

No Calibrations
No need to calibrate your sensors - ever.

Total Reader

Bluetooth Capability

Bluetooth Capability
Easily connect your Total Reader to the DataMaster L6 app to collect and store data and generate reports.

Fast and Accurate Readings

Fast and Accurate Readings
After only 24 hours of acclimation, obtain precise moisture readings in seconds, ensuring reliable data for your concrete moisture testing needs.

User-Friendly interface

User-Friendly Interface
The intuitive design makes it simple to use, reducing the learning curve and improving efficiency on the job site.

Simplest F2170 Test

Simplest F2170 Test
Experience the easiest way to comply with ASTM F2170 standards, streamlining the process of concrete moisture testing.

Robust Construction

Robust Construction
Built to withstand the rigors of construction environments, ensuring durability and long-lasting performance.

DataGrabber with Bluetooth

Reusability

Reusability
Easily remove from the Rapid RH L6 Smart Sensor using the Extraction Tool (included with purchase) so you can reuse the device again.

Smart App Integration

Smart App Integration
Store, organize, and send readings directly to the free DataMaster L6 app via Bluetooth®. Manage projects effortlessly on your smart device.

Auto Data Collection Mode

Auto Data Collection Mode
Periodically engage the Rapid RH L6 Smart Sensor to store time-stamped concrete temperature and RH readings according to the time interval set by the user.

Data Collection and Storage

Data Collection and Storage
Automatically take readings on your defined schedule and store the data in the onboard memory built into the L6 Smart Sensor.

What are the 3 types of monitoring?

When it comes to relative humidity testing in concrete slabs, Wagner Meter’s Rapid RH L6 system offers three different ways to monitor moisture, allowing you to find the perfect fit for your clients and business - saving you time and money.

Hands-On Monitoring

Connect the Total Reader to the Rapid RH L6 Sensor for quick one-time readings. Use the Datamaster L6 mobile app to view ambient conditions and download data.

Hands-On Monitors
Total Reader
Total Reader

Quickly reads concrete moisture, temperature, and relative humidity.
Rapid RH L6 Smart Sensor
L6 Smart Sensors

Highly accurate relative humidity sensor that takes and stores your readings.

Automatic On-Site Monitoring

Leave the DataGrabber with Bluetooth and Rapid RH L6 sensor to collect interval readings when you aren’t there. Simply return to the jobsite and use the Datamaster L6 mobile app to collect stored data.

Automatic Monitoring
Datagrabber
Rapid RH L6 DataGrabber
with Bluetooth®


An optional accessory to automate your readings, saving time and effort.
Rapid RH L6 Smart Sensor
L6 Smart Sensors

Highly accurate relative humidity sensor that takes and stores your readings.
Datamaster
DataMaster™ L6 App

Easy to use app for storing and reporting your data.

True Remote Monitoring™

This system combines the best of Rapid RH and Floorcloud™ technology to bring you real-time jobsite climate and concrete moisture conditions.

True Remote Monitoring
Datagrabber
Rapid RH L6 DataGrabber
with Bluetooth®


An optional accessory to automate your readings, saving time and effort.
DataGrabber Range Extender(DGRE)
Rapid RH DataGrabber Range Extender(DGRE) and Protective Dome

Used to extend the range of your DataGrabber with Bluetooth to reach the Floorcloud sensor.
Floorcloud
Floorcloud™ Jobsite Conditions Sensor

Track key jobsite conditions in real-time to prevent delays and ensure smooth operations.


Smart Logger V2

Built-in Ambient Sensors

Built-in Ambient Sensors
Measure temperature and relative humidity (RH).

Smart App Integration

Smart App Integration
Store, organize, and send readings directly to the free Wagner Sentry app via Bluetooth®. Monitor ambient conditions effortlessly on your smart device.

Data Collection and Storage

Data Collection and Storage
Capture, record, and send up to 16,384 readings of ambient temperature and relative humidity (RH) data.

Floor Sentry Compatibility

Floor Sentry Compatibility
Pairing your Floor Sentry and Smart Logger V2 to the Wagner Sentry app allows you to view both the ambient and in-floor conditions simultaneously, enabling users to easily transmit and record data, and even send reports via email.

Orion 950

Dual Depth Measurements

Dual Depth Measurements
Measure moisture at 0.25" or 0.75" depths to accommodate a variety of wood thicknesses.

Built-In Temperature and Humidity Sensor

Built-In Temperature and Humidity Sensor
Monitor ambient conditions, ensuring optimal settings for woodworking projects.

Auto-EMC Calculations

Auto-EMC Calculations
The Orion 950 automatically calculates equilibrium moisture content (EMC), letting you know when your wood is ready for installation or fabrication and eliminating guesswork.

Dew Point and GPP/GPK Calculations

Dew Point and GPP/GPK Calculations
Instantly calculate the environment’s dew point and grains per pound/kilogram to understand specific humidity levels.

On-Demand Calibration

On-Demand Calibration
Calibrate on the go with the On-Demand Calibrator. Maintain your meter's precision without the hassle of returning it for recalibration.

Fast, Non-Damaging Pinless Sensor

Fast, Non-Damaging Pinless Sensor
Say goodbye to filling pinholes left by traditional pin meters. The Orion 950 provides non-invasive readings, measuring inside the wood, not just on the surface.

Relative Measurement Mode

Relative Measurement Mode
Measure moisture in non-wood building materials such as drywall, plywood, OSB and MDF.

Smart App Integration

Smart App Integration
Store, organize, and send readings directly to the free FloorSmart™ or Woodshop MC apps via Bluetooth®. Manage projects effortlessly on your smart device.

Auto Data Collection Mode

Auto Data Collection Mode
Take and store multiple readings automatically without seeing the screen, saving time and increasing efficiency. This feature is especially useful when paired with Wagner Meter's Meter Reach Extender for hard-to-reach spaces.

Data Collection and Storage

Data Collection and Storage
Choose between manual or automatic data collection modes to suit your workflow. View detailed moisture stats directly on the meter for easy tracking and analysis.

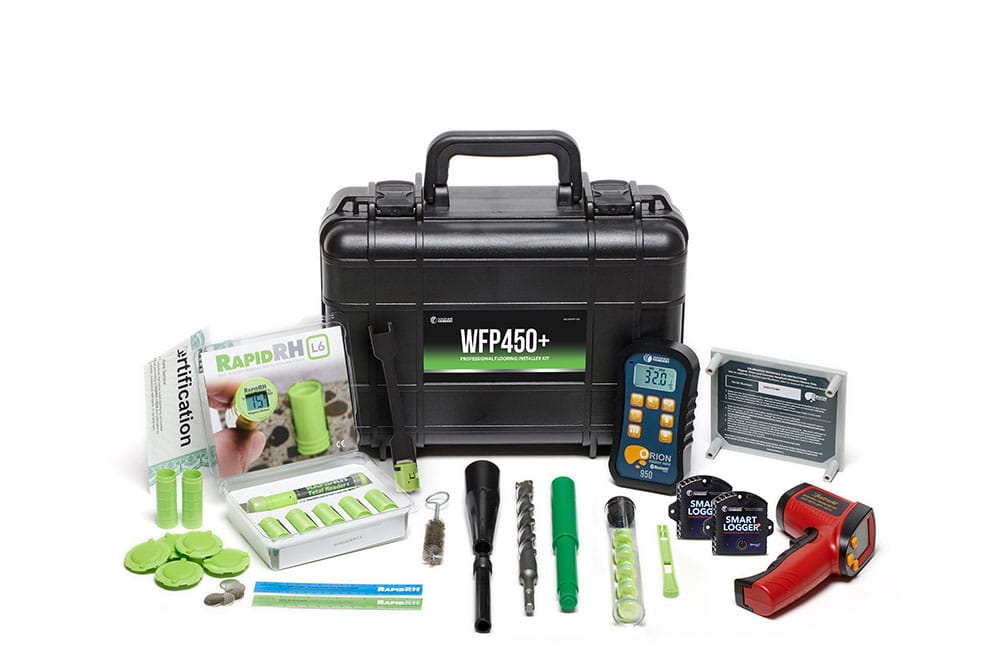

Kit Contents

The WFP450+ Kit includes:

  • Orion 950 Smart Dual Depth Pinless Moister Meter with Rubber Boot
  • On-Demand Calibrator for the Orion Meter
  • Infrared (IR) Thermometer

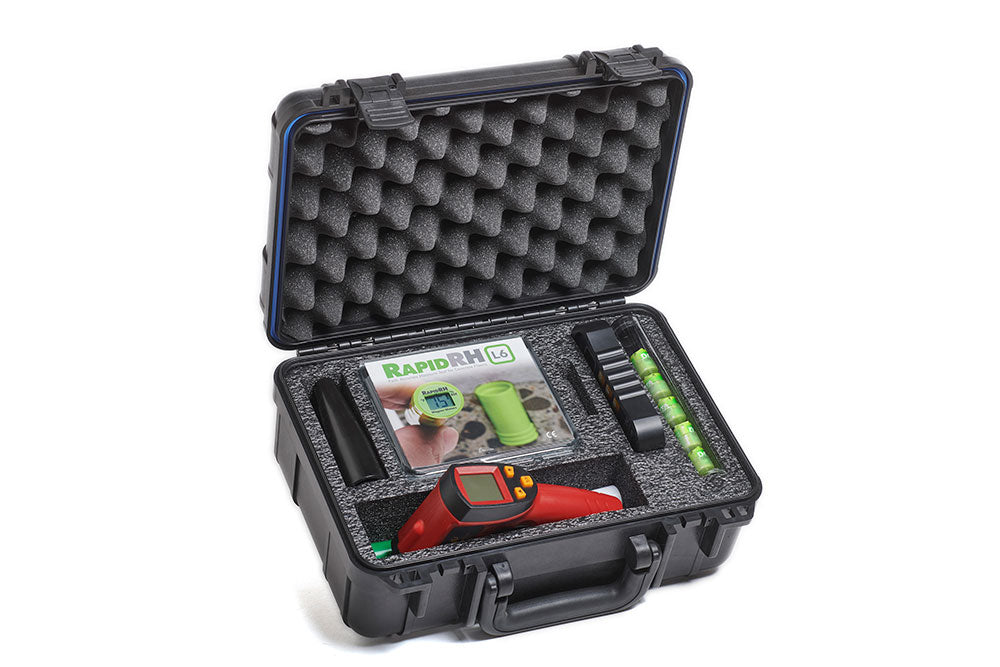

  • Rugged Hard-shell ABS Carrying Case with Foam-padded Interior
  • Tube of 5 ea. L6 DataGrabbers with Bluetooth and Extraction Tool
  • The Rapid RH L6 Starter Kit:
    • 5 ea. L6 Smart Sensors
    • 1 ea. Total Reader with Bluetooth
    • 2 Smart Logger Ambient Temperature and Humidity Recorders
    • 1 ea. Insertion Tool
    • 10 ea. Sleeve Extensions
    • 5 ea. Protective Caps with Butyl Rubber Seal and Integral Access Cover
    • 5 ea. Stainless Steel Covers
    • 1 ea. ¾” SDS Masonry Drill Bit
    • 1 ea. Wire Cleaning Brush
    • 1 ea. Vacuum Attachment
    • Certificate of Calibration
    • Floor Map
    • Instruction Manual
    • One CR1/3N Battery for the Total Reader

Find the Right Rapid RH Flooring Kit for You

Technical Specifications

Total Reader Specifications

  • Battery Description: CR1/3N
  • Batteries: 2 Lithium Metal batteries required (included)
  • Operating Humidity: 10-90%
  • Item Weight: 0.634 ounces
  • Package Dimensions: 6.1 x 4.65 x 1.57 inches

Smart Logger V2 Specifications

  • Signal Transmission Frequency: 2.4GHz
  • Protocol Standard: BLE 5
  • Modulation Mode: GFSK
  • Advertisement Interval: 2 seconds
  • Output Power: 0 dBm
  • Communication Rate: 1 Mbps
  • Transmission Distance: Up to 150 ft (46 meters)
  • Storage: 16,384 data measurements
  • Operating Temperature Range: -22°F (-30°C)~140°F (60°C)
  • RH Measurement Range: 0~100%RH
  • Temperature Measurement Accuracy: ±0.1°
  • RH Measurement Accuracy: ±1.5%RH
  • Net Weight: 1 ounce (30g)
  • Dimensions: 2.4 in. (60mm) x 2.6 in. (67mm) x 0.6 in. (16mm) – Height, with double-stick adhesive pad: 0.8 in. (20mm)
  • Material: ABS, PCB, FR4
  • Power Source: Battery Powered

Orion 950 Specifications

  • Dimensions with Boot: Length: 5.75 inches (146mm) - Width: 3.0 inches (76mm) - Thickness: 1.0 inches (25mm)
  • Scanning Area: 2.0 inches (50mm) x 2.5 inches (63mm)
  • Weight with Boot:  7.2 oz. (204g)
  • Power: 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)
  • Auto Power Shut-Down: 60 seconds
  • Measurement Ranges: MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting)
  • Relative Measurement Scale: 0-100
  • Dual Depth Measurement
    --
    Appropriate for reading into the wood to .25” (6.4mm) in depth in the shallow scan mode
    -- Appropriate for reading into the wood to .75” (19mm) in the deep scan mode
  • Internal Data Storage Capacity: 100 saved readings
  • Ambient Temperature Range: 32˚F to +110˚F (0˚C to +43˚C)
  • Ambient Relative Humidity Range: 0% to 100%
  • Equilibrium Moisture Content Measurement Range: 0-40.7%
  • Dew Point Range: -85˚F to +110˚F (-65˚C to +43˚C)
  • Absolute Humidity Range: 0 to 431.1 lb/ft (0 to 61.6 kg/m)
  • Specific Gravity Range for Wood Species: 0.20-1.0 SG
  • Storage Temperature and Humidity: +50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing
  • Operating Temperature Range: +32˚F to +110˚F (+0˚C to +43˚C)
  • Backlight: Includes adjustable backlit display

Infrared Thermometer Specifications

  • Measurement Range: -25.6° F to 707° F (-32° C to 375° C)
  • Accuracy:  ±2% of reading
  • Distance to Spot Ratio: 12:1
  • Emissivity: Preset at 0.95
  • Response Time: ≤500ms
  • Repeatability: ±1% of reading or ± 2° F (1° C), whichever is greater
  • Battery: 9V
  • Dimensions: 6 in x 5 in x 1.5 in

DataGrabber with Bluetooth Specifications

  • Measurement Range: -25.6° F to 707° F (-32° C to 375° C)
  • Accuracy:  ±2% of reading
  • Distance to Spot Ratio: 12:1
  • Emissivity: Preset at 0.95
  • Response Time: ≤500ms
  • Repeatability: ±1% of reading or ± 2° F (1° C), whichever is greater
  • Battery: 9V
  • Dimensions: 6 in x 5 in x 1.5 in

Videos

Explore the Rapid RH L6

How the Rapid RH L6 Accessories Work

Explore the Smart Logger V2

Explore the Orion 950

Expert Insights

Apps

The DataMaster™ L6 app connects via Bluetooth® to the Total Reader to create a hands-on automated system of reading, recording, and reporting your concrete slab moisture test data. The DataMaster L6 utilizes a continuous flow of data to offer optimal data security, accompanied by a range of impressive benefits.

Datamaster Apple App  Datamaster Android App

The Smart Logger V2 monitor incorporates the latest Bluetooth® technology and works in tandem with the Wagner Sentry app, which can be downloaded for free at the Apple Store or Google Play. The app connects the Smart Logger V2 monitor through a mobile device’s Bluetooth (Android or iOS devices), enabling users to easily transmit and record data, and even send reports via email.

 Apple App  Android App

The complimentary Wagner Meters Woodshop MC app is designed with woodworkers in mind. The app connects your smart device to the Orion 950 Moisture Meter via Bluetooth® technology to receive and record data, set specifications for separate jobs, wood materials, and much more.

Woodshop MC App  Woodshop MC

The FloorSmart™ app is designed with wood flooring installers in mind. The app connects your smart device to the Orion 950 Moisture Meter via Bluetooth® technology to receive and record data, set specifications for separate jobs, wood materials, and much more.

 Apple App  Android App

Frequently asked questions

How long will the display on the Rapid RH® Total Reader stay on?

The display on the Rapid RH® Total Reader will toggle between RH (%) and temperature readings for a period of five minutes before it turns itself off.

What is Touch-n-Sense™ Technology (for L6)?

Touch-n-Sense™ is our patent-pending technology, integrated into the Rapid RH® Total Reader to enable it to automatically take a reading when placed in contact with the Rapid RH® L6 Smart Sensors. Once the bottom of the Total Reader makes contact with the Smart Sensor, it takes a reading. The Total Reader holds the reading for 5 minutes, even when removed from the test hole. It also sends readings to your mobile device via Bluetooth®. It’s just that easy.

Does my Rapid RH® Total Reader need to be calibrated periodically?

No. Each Rapid RH Smart Sensor has an embedded calibration from the factory.* The Total Reader simply displays what the Smart Sensor tells it. Therefore, no calibration is necessary.

What is the Smart Logger V2?

The Smart Logger V2 is an ambient conditions data logger monitoring temperature and humidity conditions at the jobsite, home, and anywhere else environmental conditions may become a concern.

How Does the Smart Logger V2 Work?

The Wagner Meters Smart Logger™ V2 is a low-energy temperature and humidity data logger featuring the latest Bluetooth® 5.0 technology and a NRF52832 chip. It collects temperature and relative humidity readings from the surrounding environment and records them as historical data. The Smart Logger V2 can store up to 16,384 temperature and relative humidity measurements. Any smartphone or smart device with Bluetooth 5.0 or above can download and install the accompanying app to store and monitor the temperature and relative humidity of the environment as conditions change.

When Would a Data Logger Be Useful?

There are a handful of potential applications for the Smart Logger V2 to provide value monitoring ambient conditions here are a few:

  1. Construction/building environmental monitoring
  2. Wood products shipping and transport
  3. Perishable items (food, medicine, flowers, etc.) transport
  4. Refrigerated storage and shipping
  5. Archive rooms/vaults
  6. Laboratory testing and storage rooms
  7. Museum displays and storage

What are the Residential Applications for a Smart Logger V2?

  • Obtain consistent documentation of service conditions and reduce your liability.
  • Remind your customers to maintain optimal conditions at the project area.
  • Boost your credibility with customers who see your use of the latest technology.
  • Get another touch point with your customers as you return to retrieve the Smart Logger™ V2 monitor.

What are the Industrial and Commercial Applications of a Smart Logger V2?

  • Save time and money by reducing the need for excess job site visits to monitor ambient conditions.
  • Reduce your liability and avoid “the blame game” with documented monitoring of job site conditions.
  • Provide a visible reminder to the general contractor and workers to maintain service conditions.
  • Maintain your great reputation with general contractors by using the latest technology to ensure successful outcomes.

What is an Orion pinless moisture meter?

The Orion series of pinless moisture meters features accuracy, versatility, and quality that can’t be found in other meters. Incorporating enhanced technology, the Orion line leaves our competitors in the sawdust with high-speed moisture content readings, on-site calibration, and relative measurement mode for non-wood products - all backed by our industry-leading 7-year warranty.

How does an Orion pinless moisture meter work?

Orion Pinless meters send out electromagnetic waves from the sensor pad, creating a field that scans the area underneath. The meter then interprets the signal it receives back to provide an accurate moisture content reading. Unlike pin-style meters that measure in one small spot, pinless meters scan a larger area, giving you a more complete picture of the wood's moisture content.

How do I send readings from my Orion 950 to the FloorSmart app?

To send readings from the Orion 950 to the FloorSmart app on your smart device, follow these steps:

  1. Ensure that Bluetooth is enabled on your smart device. The Orion 950 will automatically pair with your smart device when the power is on and the device is within Bluetooth range.
  2. Ensure that the DATA mode on the 950 is ON. Consult your Orion 950 manual for instructions.
  3. Open the FloorSmart app and enter a new job description or choose a current job to edit.
  4. Press the “Record” tab at the bottom left to access the “Record Readings” screen.
  5. Press the “Record” button at the top right to enable the app to record data from the Orion 950.
  6. Scan the target area with the Orion 950 and press the “ON/HOLD” button to send a reading to the FloorSmart app.

Why Choose Wagner?

Wagner Meters is a trusted family-owned business that has set the standard for accuracy and reliability in the moisture measurement industry for over half a century. Our team of moisture testing experts are dedicated to helping you find the best solutions for your needs. When you choose Wagner, you're not just investing in a product—you're partnering with a company that values quality, customer care, and your success.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
